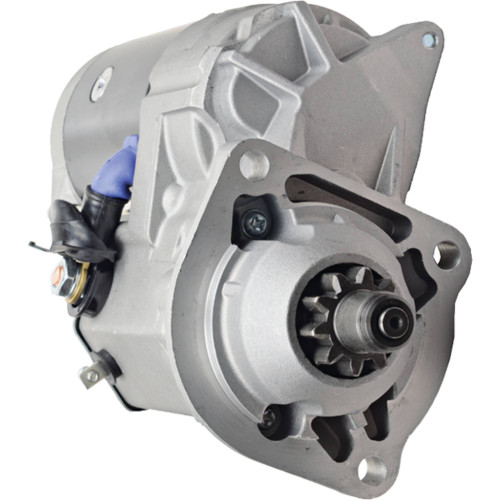

NEW Starter for BOBCAT & CLARK Skid Steer; 410-52263, 6667825, 228000-5730, 228000-5731, 228000-5732, 228000-5733, TG228080-5731; LESTER 17199
$309.99
Specifications
| UNIT/PART | Starter |
| FAMILY | Denso R |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 3 kw |
| HP | 4.023 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.591″ |
| GEAR OD | 40.400mm |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 11mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| Screw Type “S” & “R” Terminals on Solenoid Housing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ND228000-5731 |
| BOBCAT | 6667825 |
| DENSO | 228000-5730, 228000-5731, 228000-5732, 228000-5733, TG228080-5731 |
| LESTER | 17199 |
Application
| MAKE | MODEL | ENGINE | YEAR |
| Bobcat | 863 | Deutz BF4M1011F Diesel | |
| Bobcat | 863C | BF4M1011 Diesel | |
| Bobcat | 863F | BF4M1011 Diesel | |
| Bobcat | 863G | BF4M1011F Diesel | |
| Bobcat | 863HC | BF4M1011 Diesel | |
| Bobcat | 863HF | BF4M1011 Diesel | |
| Bobcat | 863HG | BF4M1011F Diesel | |
| Bobcat | 864 | Deutz BF4M1011F Diesel | |
| Bobcat | 864F | BF4M1011F Diesel | |
| Bobcat | 864G | BF4M1011F Diesel | |
| Bobcat | 864HG | BF4M1011F Diesel | |
| Bobcat | 873 | ||
| Bobcat | 873C | ||
| Bobcat | 873F | ||
| Bobcat | 873G | ||
| Bobcat | 873HG | ||
| Bobcat | 883 | Deutz BF4M1011F Diesel | |
| Bobcat | 883G | BF4M1011F Diesel | |
| Bobcat | A220 | Deutz BF4M1011F Diesel | |
| Bobcat | T200 | Deutz BF4M1011F Diesel | |
| Clark | 863 / 863H | Deutz BF4M101 | |
| Clark | 863 | Deutz BF4M101 | |
| Clark | 863H | Deutz BF4M101 | |
| Clark | 873 | Deutz BF4M101 | |
| Clark | 873 | Deutz BF4M101 | 1995 |
