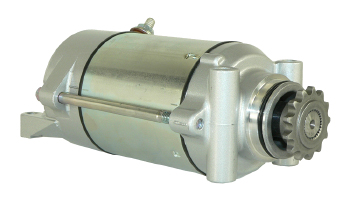

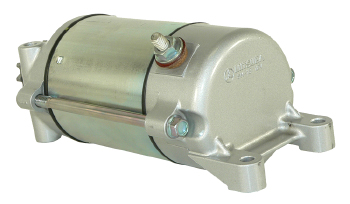

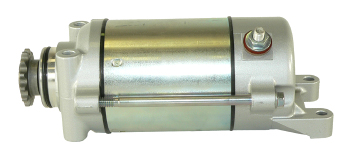

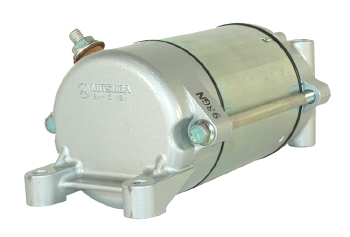

NEW Starter for HONDA CB250 Nighthawk, CMX250C Rebel, CMX250C2 Rebel, CMX250X Motorcycles; 410-54054, 31200-402-700, 31200-465-671, 31200-KB4-008, 31200KB4-008, 31200-KB4-700; LESTER 18592, 18598, 18611
$93.47
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| FAMILY | Mitsuba SM13 |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 31 |
| GEAR OD | 0.528″ |
| GEAR OD | 13.400mm |
| MOUNT HOLE ID 1 | 7mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| (2) 7mm Unthreaded Mounting Holes in CE Housing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0080, SMU0081 |
| HI LEVEL | 215345, STH0080 |
| HONDA | 31200-402-700, 31200-465-671, 31200-KB4-008, 31200KB4-008, 31200-KB4-700, 31200KB4-700, 31200-KC2-315, 31200KC2-315, 31200-KR3-008, 31200KR3-008, 31200-KR3-405, 31200KR3-405, 31200-KR3-900, 31200KR3-900, 31200-KW4-018 |
| J&N ELECTRICAL PRODUCTS | 410-54054, 410-54105 |
| LESTER | 18592, 18598, 18611 |
| MITSUBA | SM13282 |
| SOCIETA GENERALE RICAMBI | 17.81112 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1991 - 2008 | HONDA | CB250 Nighthawk | 234cc |
| 1996 - 2009 | HONDA | CMX250C Rebel | 234cc |
| 1999 - 2000 | HONDA | CMX250C2 Rebel | 234cc |
| 2012 - 2014 | HONDA | CMX250C Rebel | 234cc |
| 2015 - 2016 | HONDA | CMX250X | 234cc |
