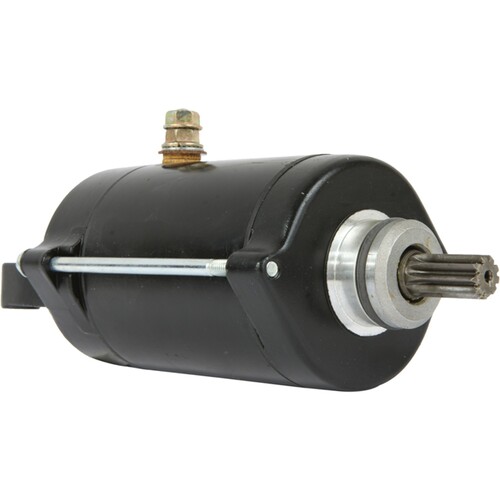

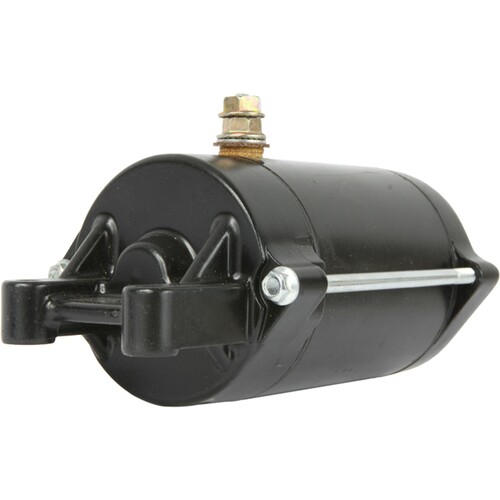

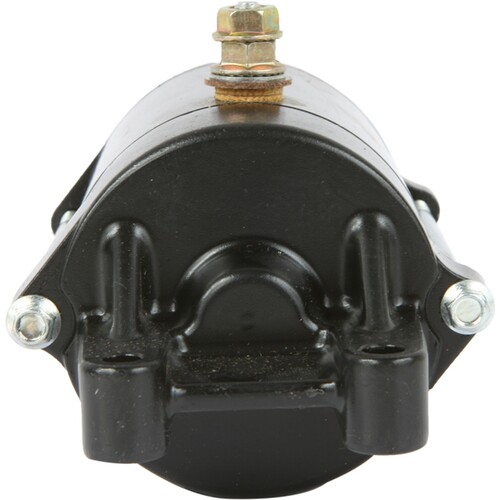

NEW Starter for HONDA PWC Applications; 410-54061, 31200HW1-673; LESTER 18431
$144.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| COLOR | Black Painted |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.469″ |
| GEAR OD | 11.900mm |
| LENGTH | 189.200 mm |
| LENGTH | 7.449″ |
| MOUNT HOLE ID 1 | 6.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 1.650″ |
| MOUNTING EAR DISTANCE 1 | 41.900mm |
| REGISTRY OD | 1.177″ |
| REGISTRY OD | 29.900mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0262 |
| J&N | 410-54061 |
| HONDA | 31200HW1-673 |
| LESTER | 18431 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2002 - 2007 | HONDA | AquaTrax F-12 | 1235cc |
| 2002 - 2007 | HONDA | AquaTrax F-12X | 1235cc |
| 2003 - 2007 | HONDA | AquaTrax R-12X | 1235cc |
| 2004 - 2006 | HONDA | AquaTrax R-12 | 1235cc |
| 2005 - 2007 | HONDA | AquaTrax F-12X GPScape | 1235cc |
