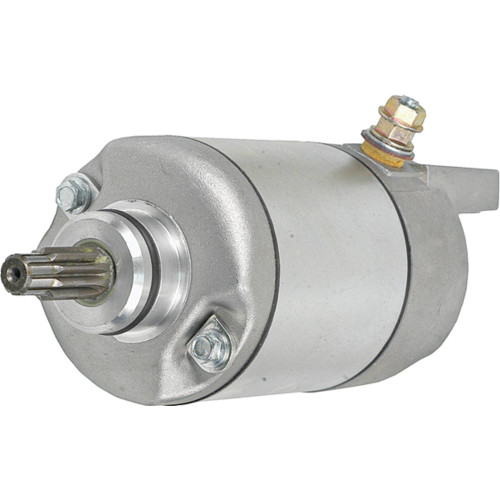

NEW Starter for HONDA TRX 500 FA, TRX 500 FGA & TRX 500 FPA ATV; 410-54066, 31200HN2-003, 31200HN2A01, STH0314; LESTER 18610, 18666

NEW Starter for HONDA TRX 500 FA, TRX 500 FGA & TRX 500 FPA ATV; 410-54066, 31200HN2-003, 31200HN2A01, STH0314; LESTER 18610, 18666

$159.99

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Counter Clockwise
NUMBER OF TEETH 10
GEAR OD 0.508″
GEAR OD 12.900mm
LENGTH 149.200 mm
LENGTH 5.874″
MOUNT HOLE ID 1 7mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR DISTANCE 1 1.114″
MOUNTING EAR DISTANCE 1 28.300mm
REGISTRY OD 1.181″
REGISTRY OD 30mm
WARRANTY 1 Year
M6 B+ Terminal

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SMU0217, SMU0314
HI LEVEL STH0314
HONDA 31200-HN2-003, 31200HN2-003, 31200HN2A01, 31200-HN2-A01
J&N ELECTRICAL PRODUCTS 410-54066
LESTER 18610, 18666

Applications

Part fit

MAKE MODEL ENGINE YEAR
Honda TRX 500 FA 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Honda TRX 500 FGA 2004, 2005, 2006, 2007, 2008
Honda TRX 500 FPA 2009, 2010, 2011, 2012, 2013, 2014
