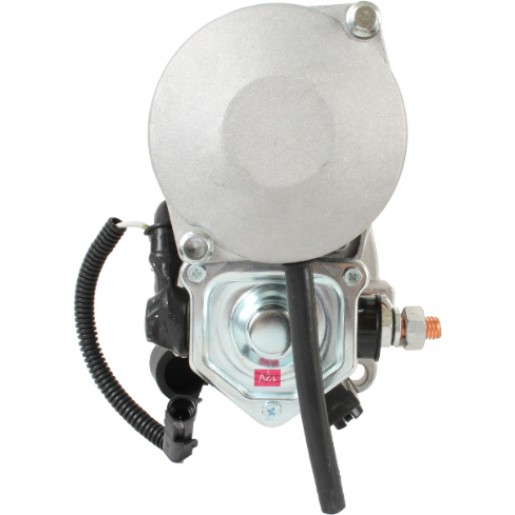

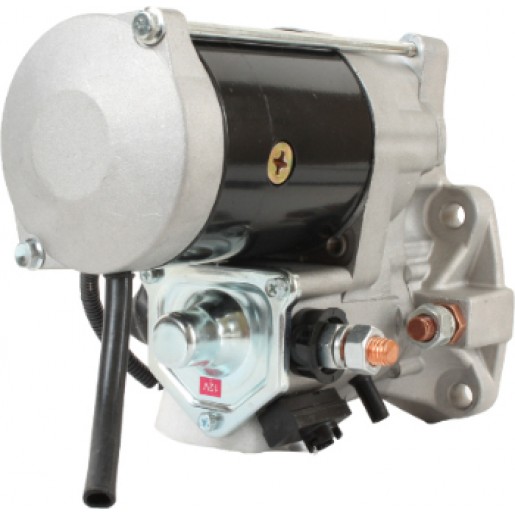

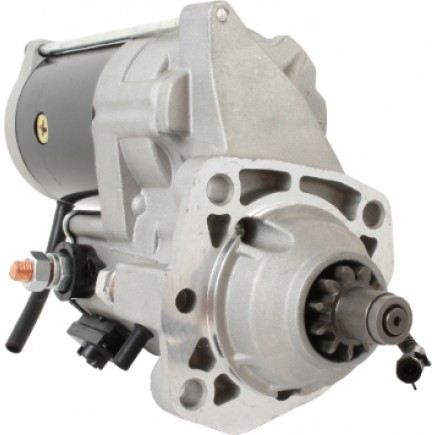

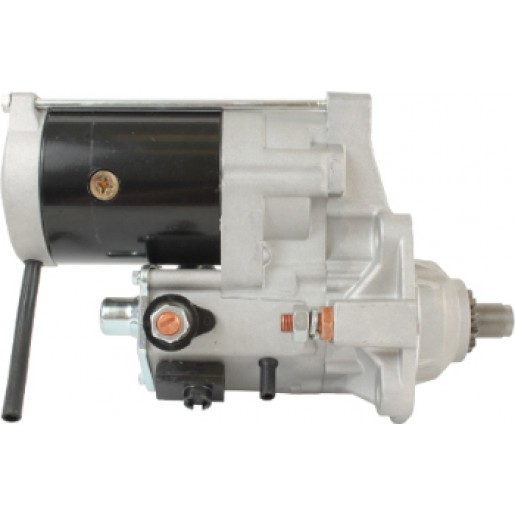

NEW Starter for JOHN DEERE Backhoe Loaders & OTH Applications; 410-52355, RE504244, RE506105, SE501853; LESTER 18568
$289.99
Specifications
| UNIT TYPE |
Starter |
| FAMILY |
Denso R |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| VOLT |
12 |
| POWER |
4 kw |
| HP |
5.364 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
11 |
| GEAR OD |
1.567″ |
| GEAR OD |
39.800mm |
| MOUNT HOLE ID 1 |
12mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
12mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| WET CLUTCH SEAL |
TRUE |
| WARRANTY |
1 Year |
|
M12-1.75 Threaded Battery & Ground Studs, M5-0.8 Threaded Excitation Terminal, 230mm Lead with Push Connection for R Terminal |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ND228000-9140, SND0733 |
| DENSO |
228000-914, 228000-9140 |
| J&N ELECTRICAL PRODUCTS |
410-52355 |
| JOHN DEERE |
RE504244, RE506105, SE501853 |
| LESTER |
18568 |
Applications
| Make |
Model |
Engine |
Year |
| John Deere |
210LE |
Diesel |
1997 – 2000 |
| John Deere |
210LJ |
84HP 4.5L Diesel |
– |
| John Deere |
310J |
84HP 4.5L Diesel |
2007 |
| John Deere |
310SJ |
93HP 4.5L Diesel |
2007 |
| John Deere |
310SJTMC |
93HP 4.5L Diesel |
2007 |
| John Deere |
315SJ |
92HP 4.5L Diesel |
2007 |
| John Deere |
325J |
|
2007 |
| John Deere |
410J |
98HP 4.5L Diesel |
2007 |
| John Deere |
410JTMC |
98HP 4.5L Diesel |
2007 |
| John Deere |
710J |
125HP 6.8L Diesel |
2007 |
