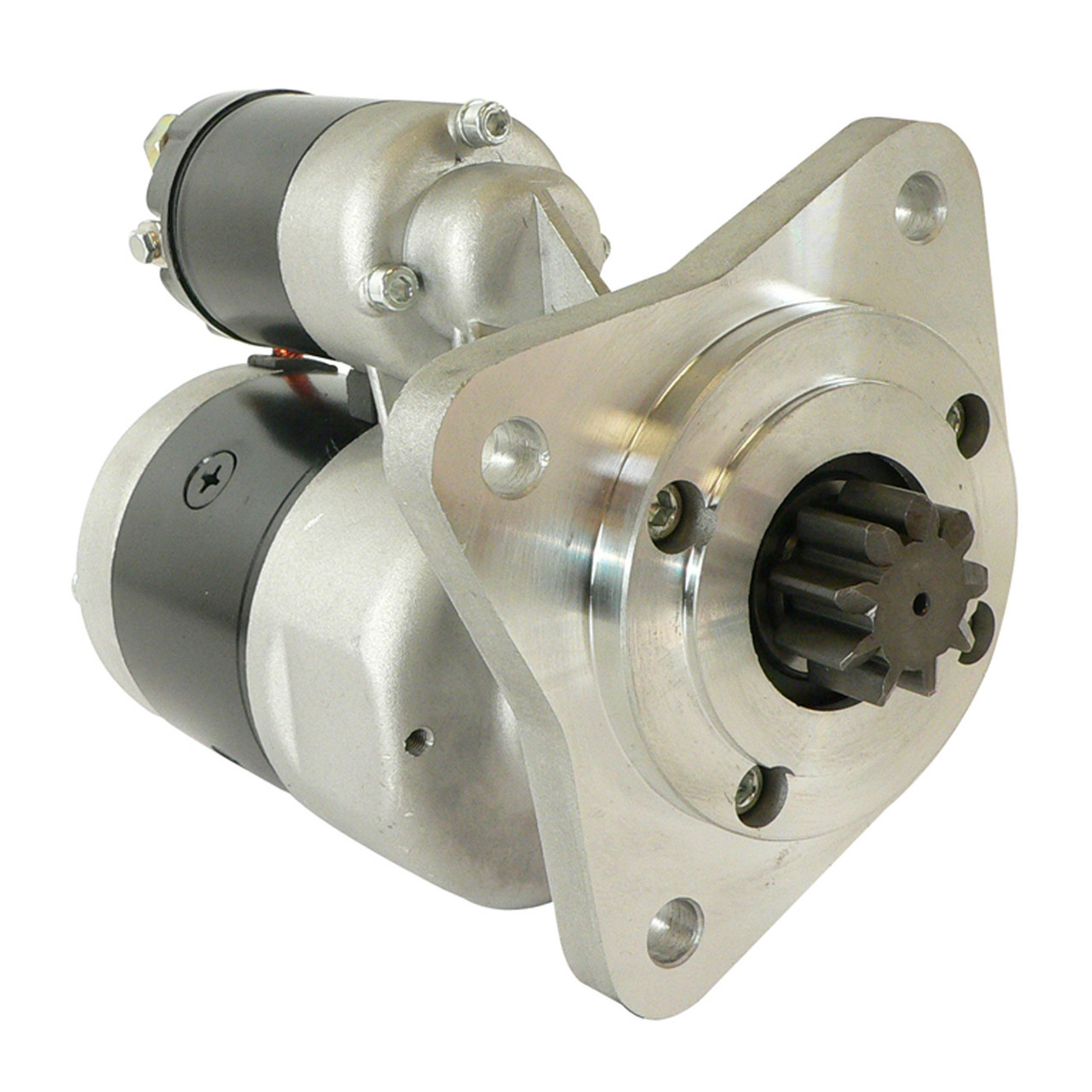

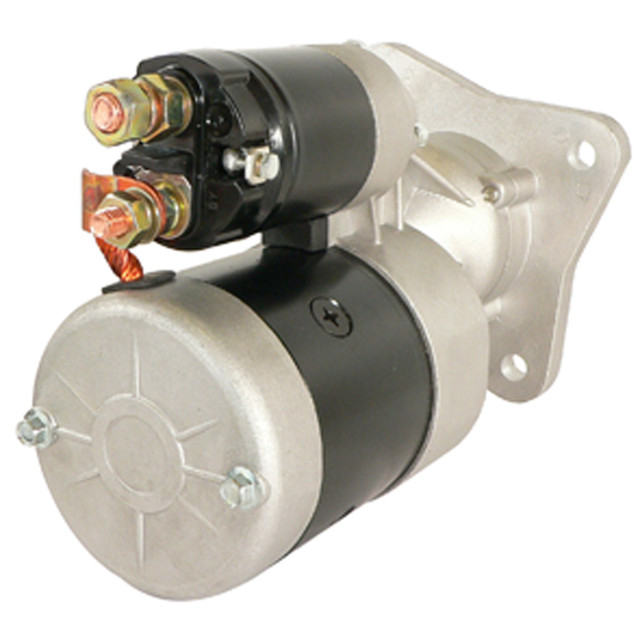

NEW Starter for MAGNETON Applications; 410-42012, 9142802, 9-142-802
$199.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 2.700 kw |
| HP | 3.621 |
| CONDITION | New |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.339″ |
| GEAR OD | 34mm |
| LENGTH | 227.400 mm |
| LENGTH | 8.953″ |
| MOUNT HOLE ID 1 | 10.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.800mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| REGISTRY OD | 3.701″ |
| REGISTRY OD | 94mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMA0003 |
| J&N ELECTRICAL PRODUCTS | 410-42012 |
| MAGNETON | 9142802, 9-142-802 |
| USED ON | BOMAG, FENDT, IHC, KHD, MWM, POCLAIN, RENAULT AGRICULTURAL |
