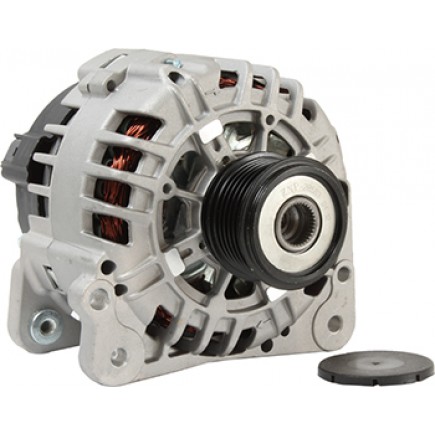

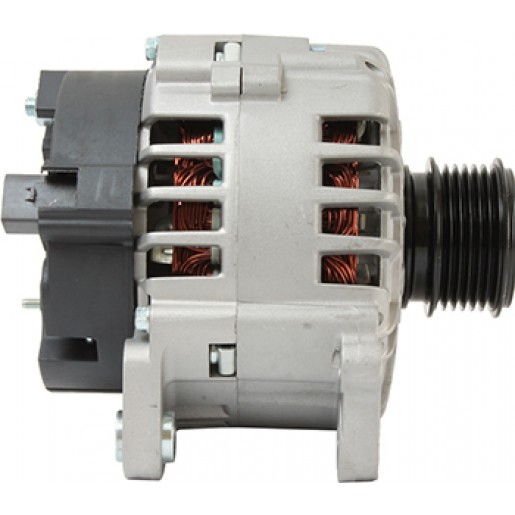

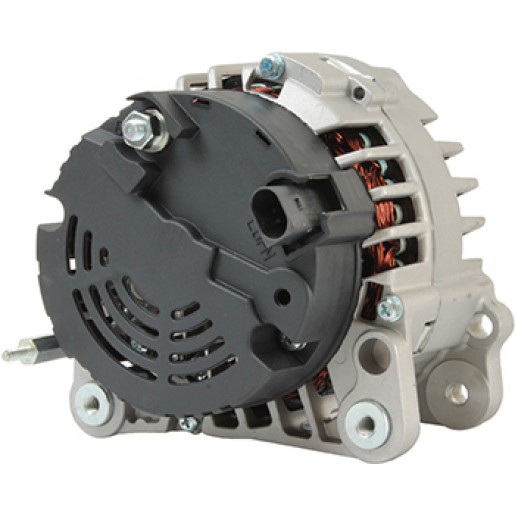

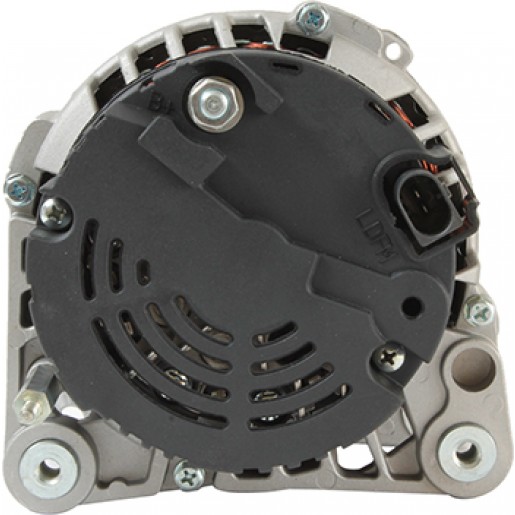

New VALEO Alternator for AUDI & VOLKSWAGEN Applications; VLS-439312, 2542237, 2542237D, 2542949, 2579147, 437317, 439312, 542237, 542949, SG12B015 SP, SG12B015, SG12B090; LESTER 13853, 13947
$529.99
Available on backorder
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 2:30 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 8.500mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M8x1.25 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | 8.500mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | Ground |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| ADD’L INFO | Plug Code “L, DFM” |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AVA0003, IA1163, MG576, V439312 |
| BOSCH | 0124515010, 0124515121, 0986041860, 0986048530, AL0189X |
| FORD | 1253624, 98VW10300EA |
| HITACHI | LR1120-701 |
| LESTER | 13853, 13947 |
| LETRIKA/ISKRA | IA 1163 |
| LUCAS ELECTRIC | LRB00475 |
| MAHLE | MG576 |
| OTHER OEMS | 9041860, CA1394IR |
| VALEO | 2542237, 2542237D, 2542949, 2579147, 437317, 439312, 542237, 542949, SG12B015 SP, SG12B015, SG12B090 |
| VOLKSWAGEN | 028903028E, 028903029G, 028-903-029GX, 038-903-023S, 038-903-024F, 038903024G, 038-903-024G, 038-903-024GX, 06B-903-018G |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2000 - 2006 | AUDI | TT | 1.8L |
| 2002 - 2003 | VOLKSWAGEN | JETTA | 2.0L |
| 2002 - 2005 | VOLKSWAGEN | BEETLE | 1.8L |
| 2002 - 2006 | VOLKSWAGEN | GOLF | 2.0L |
| 2004 - 2006 | AUDI | TT | 3.2L |
| 2005 | VOLKSWAGEN | BEETLE | 2.0L |
