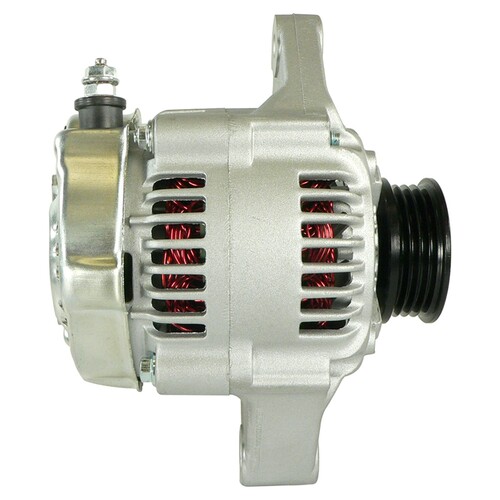

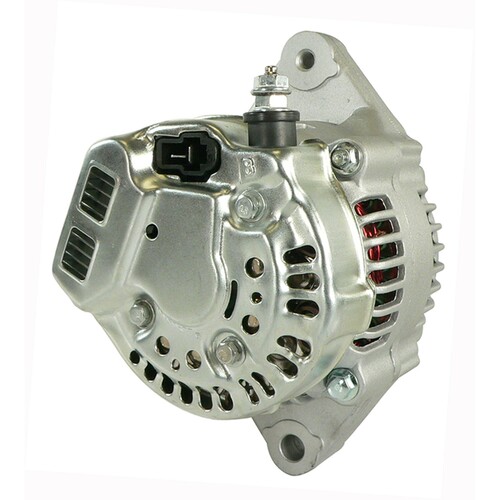

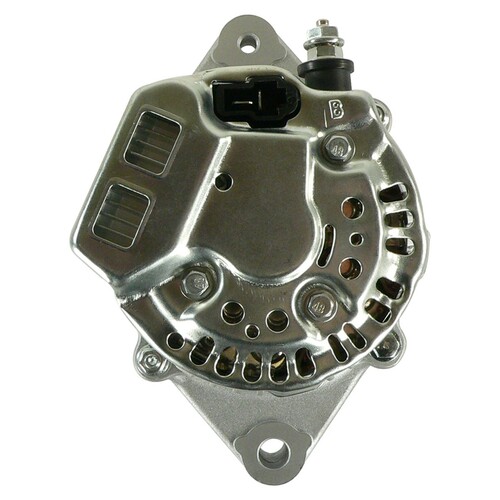

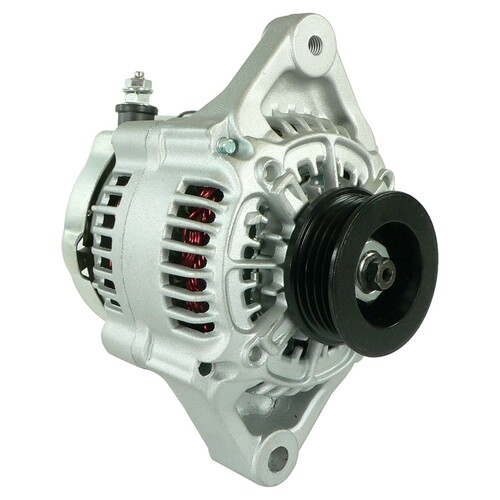

NEW Alternator for ARCTIC CAT Bearcat Wide Track, Panther 660 & T660 Turbo Snowmobiles; 400-52321, 3006-261, 101211-2880, 31400-76G00; LESTER 12877
$179.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 45 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.669″ |
| MOUNTING EAR THICKNESS | 17mm |
| MOUNTING EAR 2 THICKNESS | 1.154″ |
| MOUNTING EAR 2 THICKNESS | 29.300mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 4 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.165″ |
| PULLEY OUTER DIAMETER | 55mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARCTIC CAT | 3006-261 |
| ARROWHEAD | 400-52321 |
| DENSO | 101211-2880 |
| SUZUKI | 31400-76G00 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Arctic Cat | 4-Stroke Touring | 660cc | 2002, 2003 |
| Arctic Cat | 4-Stroke Trail | 660cc | 2002, 2003 |
| Arctic Cat | Bearcat Wide Track Turbo | 660cc | 2006, 2007, 2008 |
| Arctic Cat | Bearcat Wide Track | 660cc | 2003, 2004, 2005, 2006, 2007, 2008 |
| Arctic Cat | Panther 660 | 660cc | 2006, 2007, 2008 |
| Arctic Cat | T660 Touring EFI | 660cc | 2004, 2005, 2006, 2007, 2008 |
| Arctic Cat | T660 Turbo ST EFI Early Build | 660cc | 2005 |
| Arctic Cat | T660 Turbo ST | 660cc | 2005 |
| Arctic Cat | T660 Turbo Touring | 660cc | 2004, 2005, 2006, 2007 |
| Arctic Cat | T660 Turbo | 660cc | 2004, 2005, 2006, 2007 |
