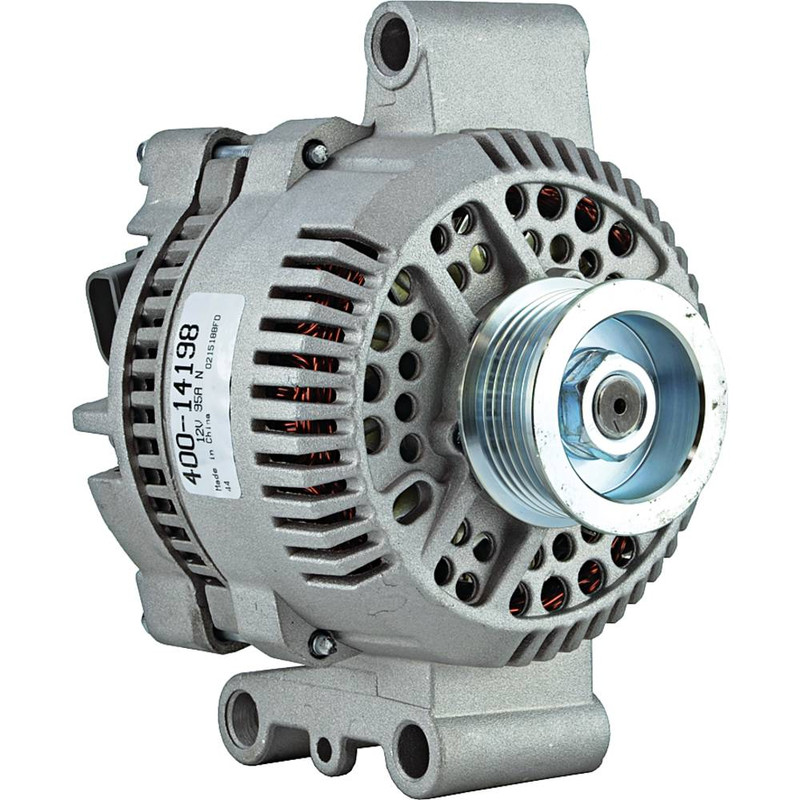

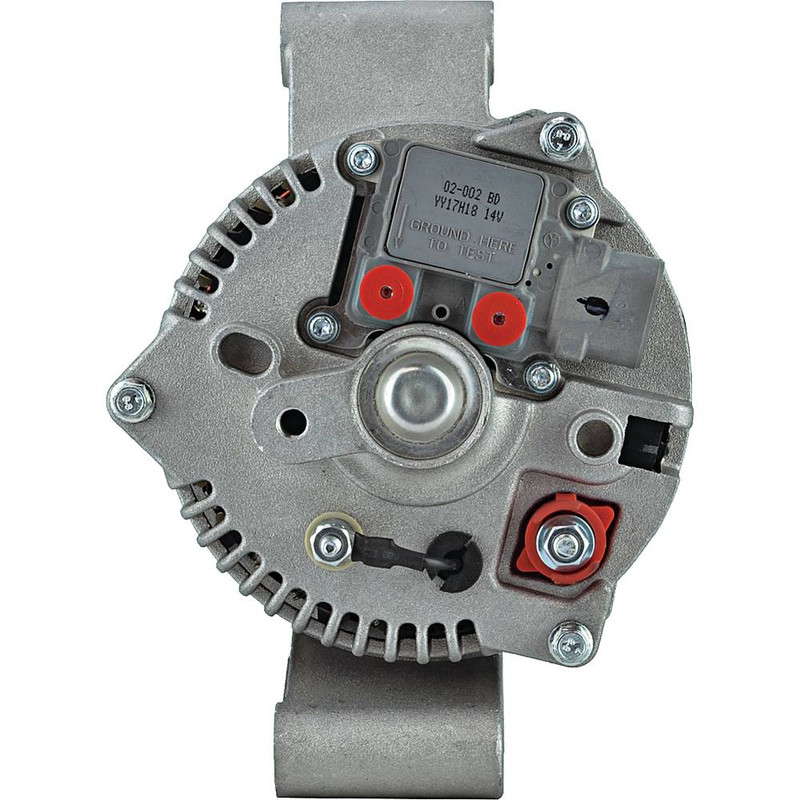

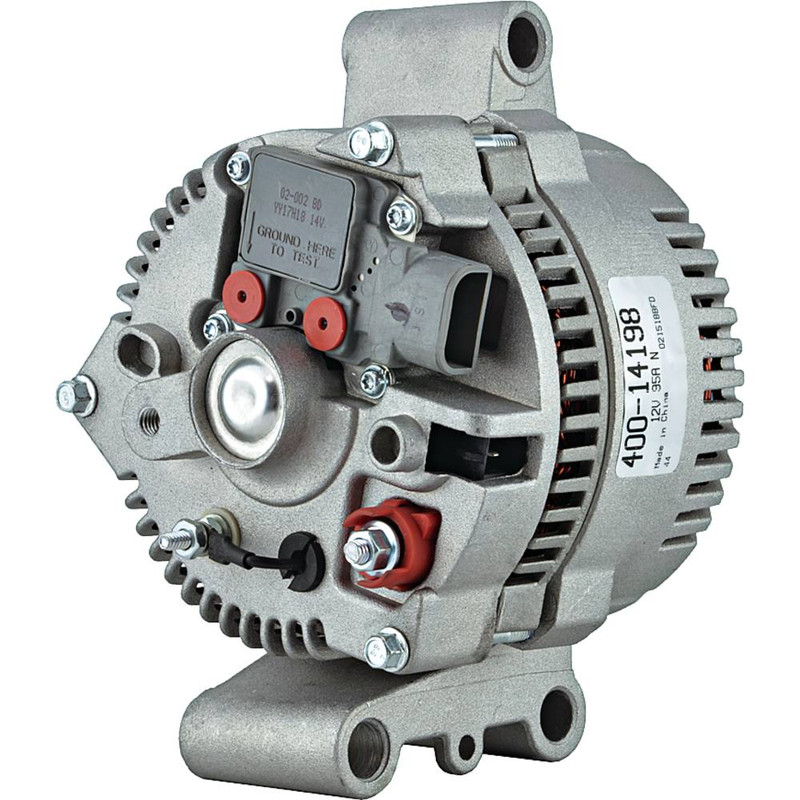

NEW Alternator for GENIE Equipment; 400-14198, 119140TT, 119140, 119140GT, DSG423, GN119140
$324.99
Specifications
| UNIT TYPE |
Alternator |
| FAMILY |
Ford 3G |
| VOLT |
12 |
| AMPS |
95 |
| REGULATOR CLOCK |
3:00 |
| MOUNT HOLE ID 1 |
10mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
13mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
0:00 |
| GROOVE OD |
2.165″ |
| GROOVE OD |
55mm |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.323″ |
| PULLEY OUTER DIAMETER |
59mm |
| WARRANTY |
1 Year |
|
Auxiliary M5-0.8 R Terminal |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-14198 |
| GENIE |
119140TT |
| OTHER OEMS |
119140, 119140GT, DSG423, GN119140 |
