NEW Alternator for VOLVO PENTA Engines - Marine; 400-48216, A003TR0093, A003TR0093ZC, A3TR0093, A3TR0093ZC, 3803911, 3840181
NEW Alternator for VOLVO PENTA Engines - Marine; 400-48216, A003TR0093, A003TR0093ZC, A3TR0093, A3TR0093ZC, 3803911, 3840181 - Image 2

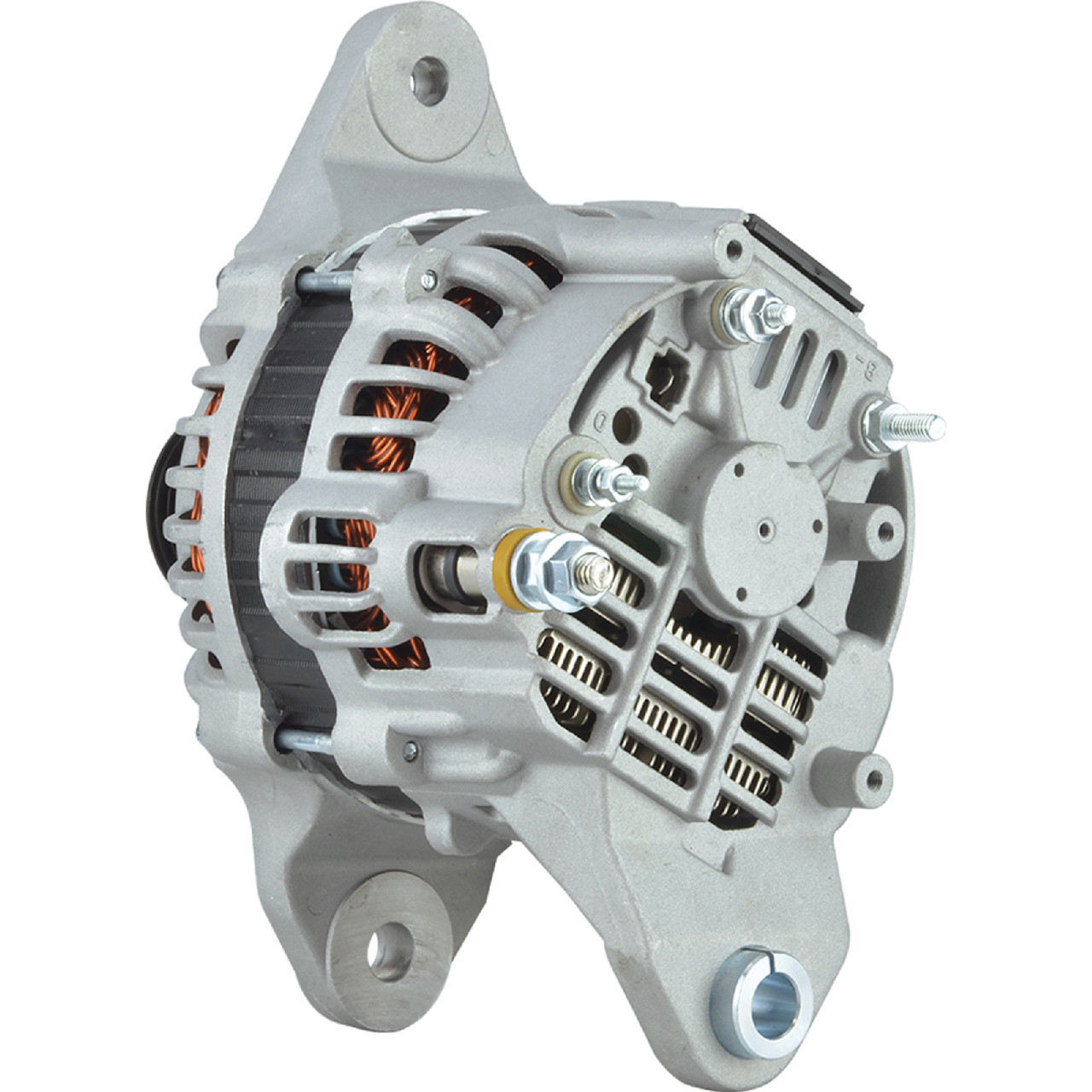

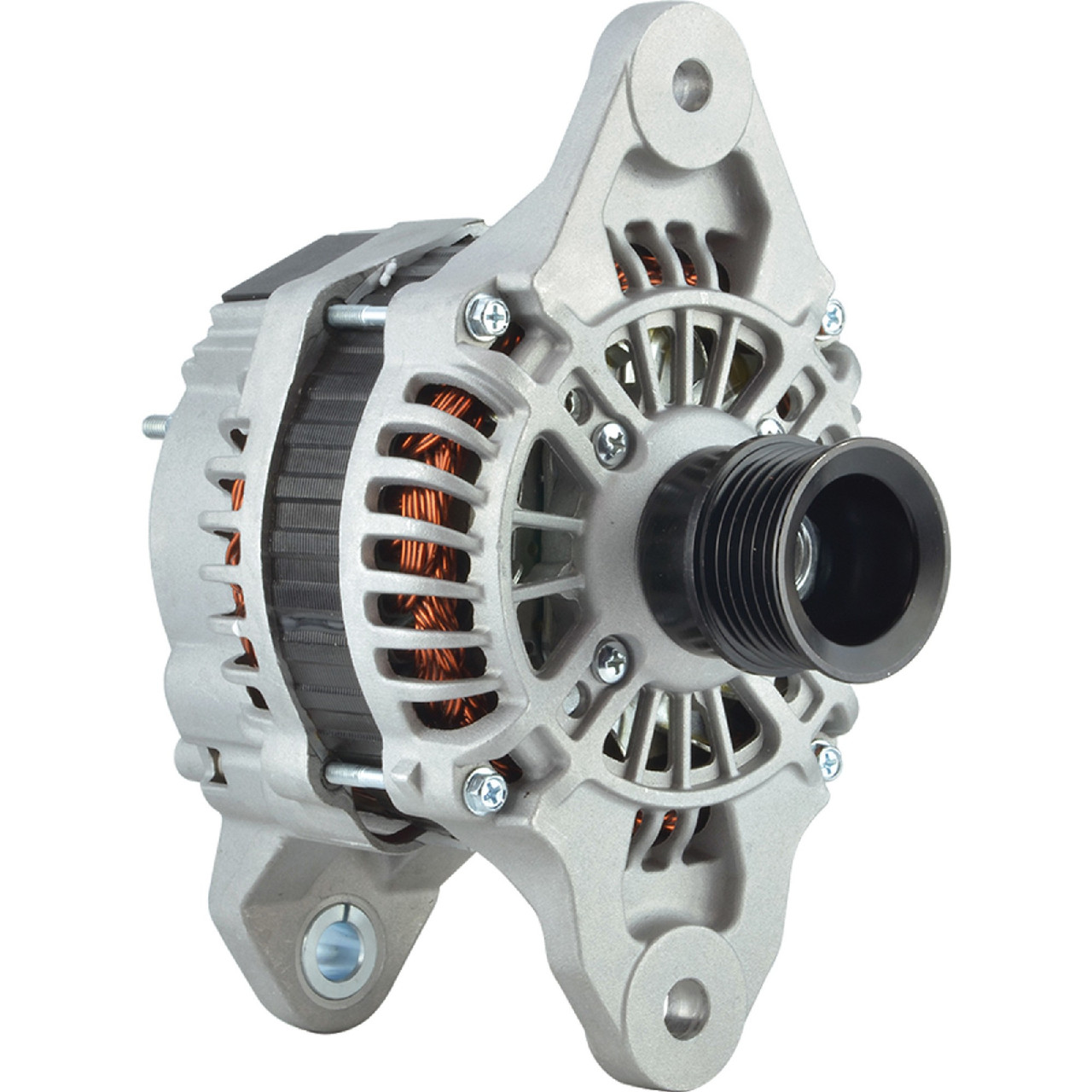

NEW Alternator for VOLVO PENTA Engines – Marine; 400-48216, A003TR0093, A003TR0093ZC, A3TR0093, A3TR0093ZC, 3803911, 3840181

$269.99





Categories: ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 115
REGULATOR CLOCK 1:00
J180 HINGE LENGTH 197.87
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 10.900mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 13.300mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.551″
MOUNTING EAR THICKNESS 14mm
MOUNTING EAR 2 THICKNESS 0.551″
MOUNTING EAR 2 THICKNESS 14mm
MOUNTING EAR 3 THICKNESS 0.827″
MOUNTING EAR 3 THICKNESS 21mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE M4x0.7
TERMINAL ID 4 W
TERMINAL 4 SIZE M5x0.8
TERMINAL ID 5 S
TERMINAL 5 SIZE Spade
TERMINAL ID 6 B-
TERMINAL 6 SIZE M6x1.00
POLARITY Negative
NUMBER OF GROOVES 6
GROOVE OD 1.850″
GROOVE OD 47mm
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.008″
PULLEY OUTER DIAMETER 51mm

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD 400-48216, AMT0246
MITSUBISHI A003TR0093, A003TR0093ZC, A3TR0093, A3TR0093ZC
VOLVO 3803911, 3840181





Applications

Part fit

MAKE MODEL ENGINE YEAR
Volvo Penta D4-180 4cyl 226ci 3.7L Diesel 2005, 2006, 2007
Volvo Penta D4-180 3700cc, 3.7L 4-Cyl 2005, 2006, 2007
Volvo Penta D4-210 4cyl 226ci 3.7L Diesel 2003, 2004, 2005
Volvo Penta D4-210 3700cc, 3.7L 4-Cyl 2003, 2004, 2005
Volvo Penta D4-225 4cyl 226ci 3.7L Diesel 2005, 2006, 2007
Volvo Penta D4-225 3700cc, 3.7L 4-Cyl 2005, 2006, 2007
Volvo Penta D4-260 4cyl 226ci 3.7L Diesel 2003, 2004, 2005, 2006, 2007
Volvo Penta D4-260 3700cc, 3.7L 4-Cyl 2003, 2004, 2005, 2006, 2007
Volvo Penta D4-300 4cyl 226ci 3.7L Diesel 2007
Volvo Penta D4-300 3700cc, 3.7L 4-Cyl 2007
Volvo Penta D6-280 6cyl 336ci 5.5L Diesel 2003, 2004, 2005, 2006, 2007
Volvo Penta D6-280 5500cc, 5.5L 6-Cyl 2003, 2004, 2005, 2006, 2007
Volvo Penta D6-310 6cyl 336ci 5.5L Diesel 2003, 2004, 2005, 2006, 2007
Volvo Penta D6-310 5500cc, 5.5L 6-Cyl 2003, 2004, 2005, 2006, 2007
Volvo Penta D6-330 6cyl 336ci 5.5L Diesel 2007
Volvo Penta D6-330 5500cc, 5.5L 6-Cyl 2007
Volvo Penta D6-350 6cyl 336ci 5.5L Diesel 2004, 2005, 2006, 2007
Volvo Penta D6-350 5500cc, 5.5L 6-Cyl 2004, 2005, 2006, 2007
Volvo Penta D6-370 6cyl 336ci 5.5L Diesel 2004, 2005, 2006, 2007
Volvo Penta D6-370 5500cc, 5.5L 6-Cyl 2004, 2005, 2006, 2007
Volvo Penta D6-435 6cyl 336ci 5.5L Diesel 2006, 2007
Volvo Penta D6-435 5500cc, 5.5L 6-Cyl 2006, 2007
Volvo Penta IPS350 4cyl 226ci 3.7L Diesel 2006, 2007
Volvo Penta IPS350 5500cc, 5.5L 6-Cyl 2006, 2007
Volvo Penta IPS400 6cyl 336ci 5.5L Diesel 2005, 2006, 2007
Volvo Penta IPS400 5500cc, 5.5L 6-Cyl 2005, 2006, 2007
Volvo Penta IPS500 6cyl 336ci 5.5L Diesel 2005, 2006, 2007
Volvo Penta IPS500 5500cc, 5.5L 6-Cyl 2005, 2006, 2007
Volvo Penta IPS600 6cyl 336ci 5.5L Diesel 2006, 2007
Volvo Penta IPS600 5500cc, 5.5L 6-Cyl 2006, 2007
