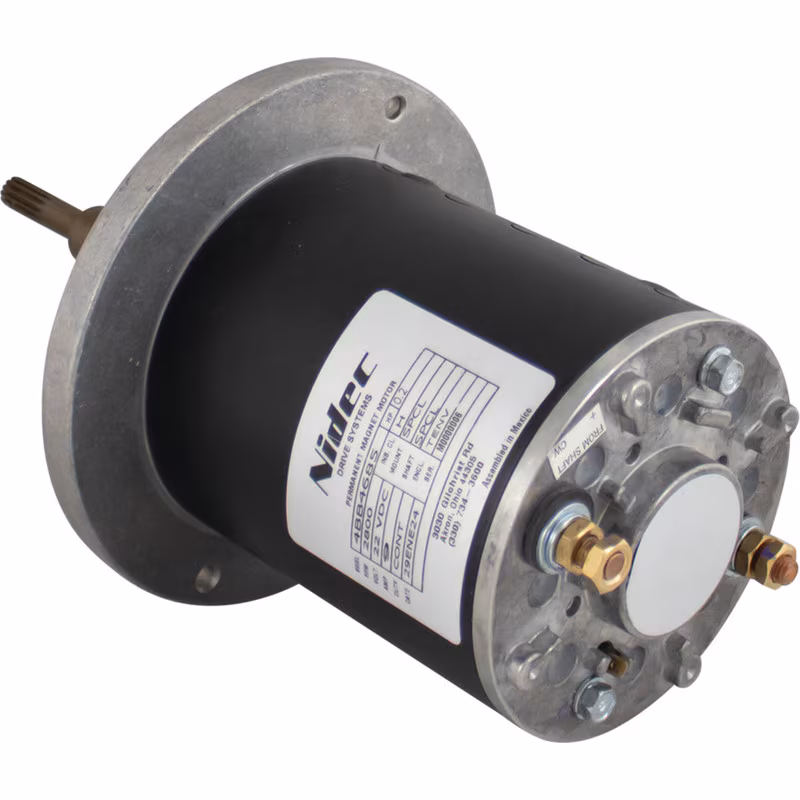

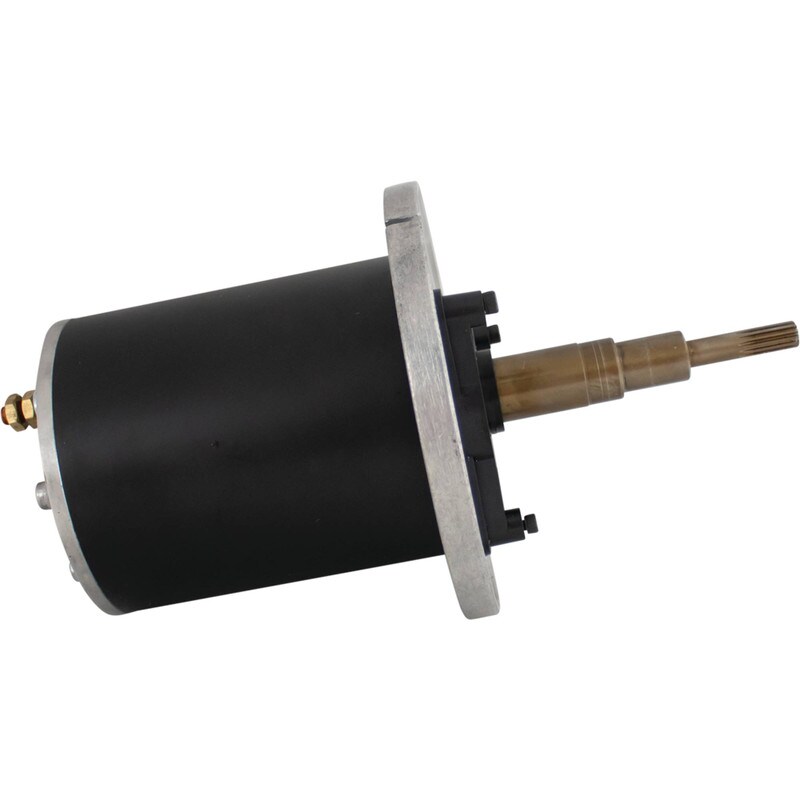

New SCOTT/IMPERIAL ELECTRIC Reel Motor; SCO-4BB4685KDM, 4BB3765, 4BB4685KDM
$579.74
Available on backorder
Specifications
| Unit Type | Reel Motor |
| Current Type | DC |
| Rotation Direction | Clockwise |
| Field Type | Permanent Magnet |
| Volt | 24 |
| Amps | 9 |
| RPM | 2800 |
| OD | 116.700 mm |
| OD | 4.594″ |
| Shaft OD | 1.004″ |
| Shaft OD | 25.500mm |
| Length | 208.800 mm |
| Length | 8.220″ |
| Terminal 2 Size | 5/16-24 |
| Terminal 3 Size | 5/16-24 |
| Shaft | Tapers from 25.5mm to 11.1mm |
| (13) Straight Spline Shaft |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| SCOTT/IMPERIAL ELECTRIC | 4BB3765, 4BB4685KDM |
