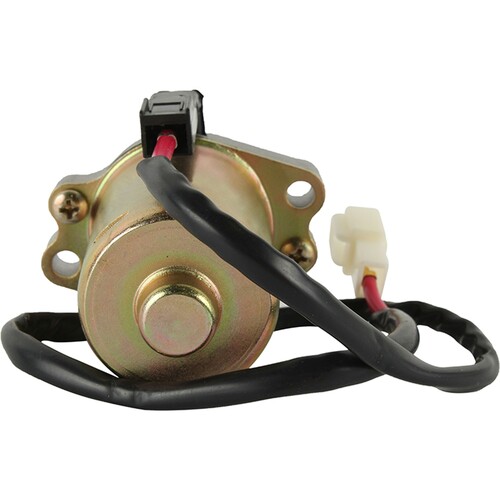

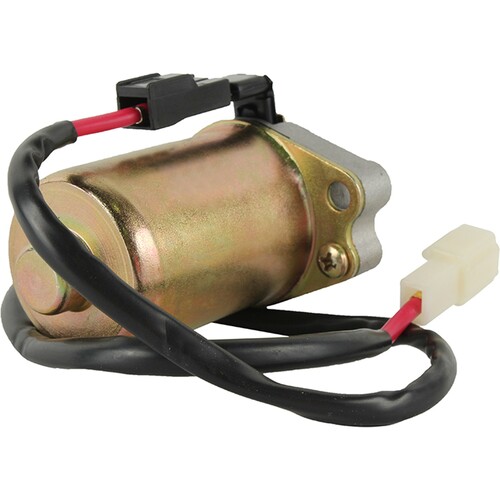

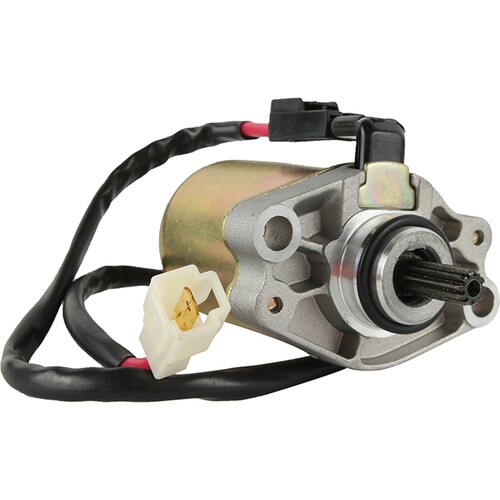

NEW Starter for APRILIA, ATALA, BENELLI & SUZUKI Scooters; 410-54236, AP2QCA000041, 00G03901891, 31100-36C01, 31100-36C02; LESTER 37036
$99.99
Specifications
| Unit Type | Starter |
| Part Type | Permanent Magnet Direct Drive (PMDD) |
| Voltage | 12 |
| Rotation | Counter Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 0.295″/ 7.500mm |
| LENGTH | 3.984″/ 101.200 mm |
| MOUNT HOLE ID 1 | 6.600mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| REGISTRY OD | 0.933″/ 23.700mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0542 |
| J & N | 410-54236 |
| APRILIA | AP2QCA000041 |
| DERBI | 00G03901891 |
| HI LEVEL | 217007, STA0542 |
| ITALJET | 337200050 |
| MALAGUTI | 61110200 |
| SOCIETA GENERALE RICAMBI | 17.81631, 17.81637 |
| SUZUKI | 31100-36C01, 31100-36C02 |
Applications
| YEAR | MAKE | MODEL | ENGINE |
| 1999 – 2003 | APRILIA | Habana 50 | 50cc |
| 1999 – 2004 | APRILIA | Mojito 50 Custom | 50cc |
| 1999 – 2003 | APRILIA | Mojito 50 Retro | 50cc |
| 2001 – 2006 | APRILIA | Scarabeo 50 Di-Tech | 50cc |
| 2000 – 2004 | APRILIA | SR 50 Di-Tech | 50cc |
| 2005 – 2013 | APRILIA | SR 50 R / Factory | 50cc |
| 1997 – 1998 | ATALA | Byte AT10 50 | 50cc |
| 1998 – 1999 | ATALA | Hacker AT12 50 | 50cc |
| 1997 – 1998 | ATALA | Hacker LC 50 | 50cc |
| 1997 – 1999 | ATALA | Hacker Racing 50 | 50cc |
| All | ATALA | Skeggia 50 | 50cc |
| 2003 – 2004 | BENELLI | 491 RR SBK | 50cc |
| 2003 – 2004 | BENELLI | 491 Sport | 50cc |
| 2003 – 2004 | BENELLI | 491 ST Rage | 50cc |
| 2003 | BENELLI | Naked Morini 50 | 50cc |
| 1998 – 1999 | SUZUKI | TR50 Street Magic | 50cc |
| 1996 – 1997 | SUZUKI | AP50 | 50cc |
| 2006 -2010 | SUZUKI | LT-Z 50 QuadSport | 50cc |
| 2017 -2018 | SUZUKI | LT-Z 50 QuadSport | 50cc |
