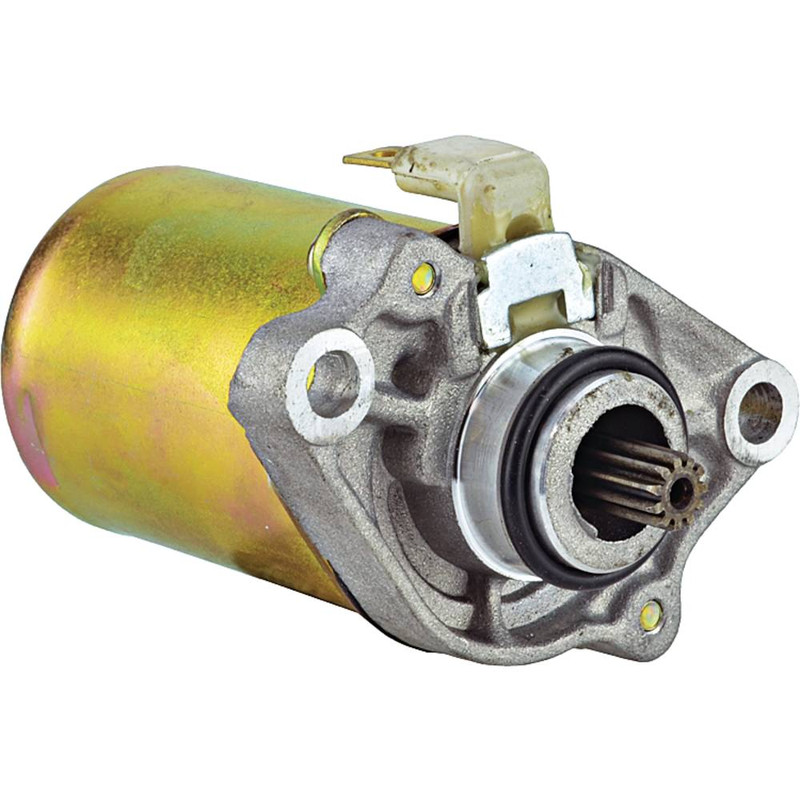

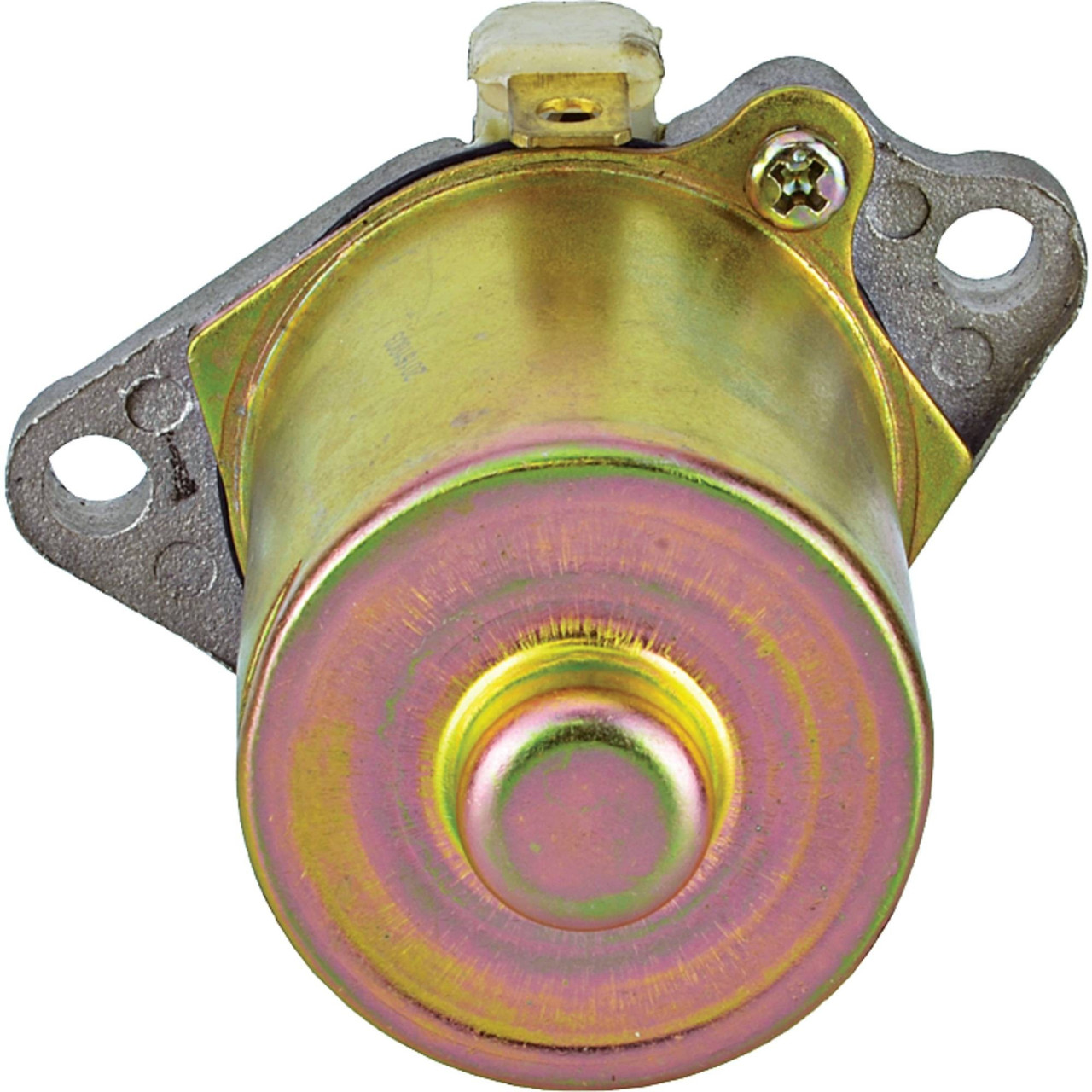

NEW Starter for APRILIA, HONDA & KYMCO Scooters; 410-58075, 286172, 82530R, AP8515107, 00104002, 31200-GR1-0040, 31210GR1-004, 31210GR1-014; LESTER 19565, 19590, 19595
$99.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 11 |
| GEAR OD | 0.307″ |
| GEAR OD | 7.800mm |
| LENGTH | 3.654″ |
| LENGTH | 92.800 mm |
| MOUNT HOLE ID 1 | 6.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| REGISTRY OD | 0.941″ |
| REGISTRY OD | 23.900mm |
| MOUNTING EAR DISTANCE 2 | 2.343″ |
| MOUNTING EAR DISTANCE 2 | 59.500mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| APRILIA | 286172, 82530R, AP8515107 |
| ARROWHEAD | SCH0021, SCH0027 |
| HI LEVEL | 215040, STA0021 |
| HONDA | 31210-GR1-004, 31210GR1-004, 31210-GR1-014, 31210GR1-014 |
| J&N ELECTRICAL PRODUCTS | 410-58075 |
| KYMCO | 00104002, 31200-GR1-0040 |
| LESTER | 19565, 19590, 19595 |
| P.G.O | 241000000/1000, B30000010650 |
| SOCIETA GENERALE RICAMBI | 17.81628 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Aprilia | Mojito 50 Custom | 50cc | 2004, 2005, 2006, 2007, 2008 |
| Aprilia | Scarabeo 50 2T E2 | 50cc | 2006, 2007, 2008 |
| Aprilia | Scarabeo 50 2T | 50cc | 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Aprilia | Sport City One 50 | 50cc 2T | 2008, 2010 |
| Aprilia | Sport City One 50 | 50cc 4T | 2009, 2011, 2012, 2013 |
| Aprilia | SR 50 IE | 50cc | 2003, 2004, 2005, 2006, 2007, 2008 |
| Aprilia | SR 50 R / Factory | 50cc | 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Honda | BF25 | 25HP | 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Honda | BF30 | 30HP | 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
| Honda | SA 50 Elite LX | 49cc | 1989 |
| Honda | SA 50 Elite SR | 49cc | 1992, 1993 |
| Honda | SA 50 Elite | 49cc | 1988, 1990, 1991 |
| Kymco | CX 50 | 49cc | 1993, 1994, 1995, 1996, 1997 |
| Kymco | DJ 50 | 49cc | 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Kymco | DJW 50 World | 49cc | 1995, 1996, 1997 |
| Kymco | DJX 50 | 49cc | 1991, 1992 |
| Kymco | K12 Sport 50 | 50cc | 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Kymco | KB 50 | 50cc | 1995, 1996, 1997, 1998, 1999, 2000 |
