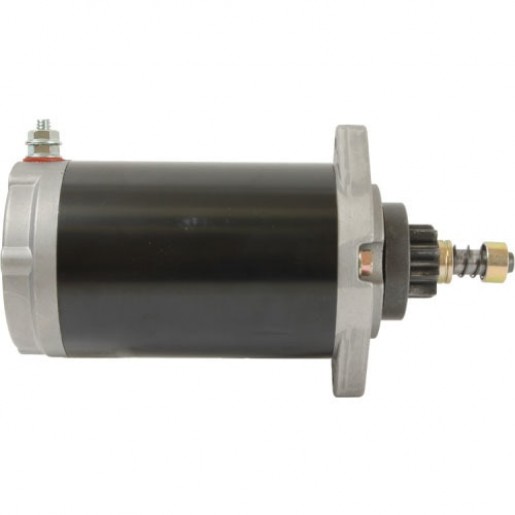

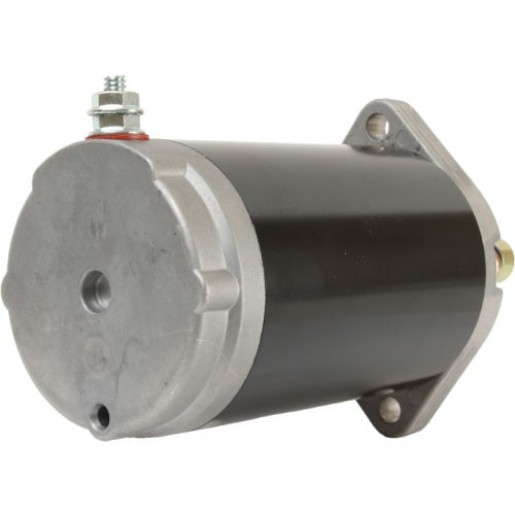

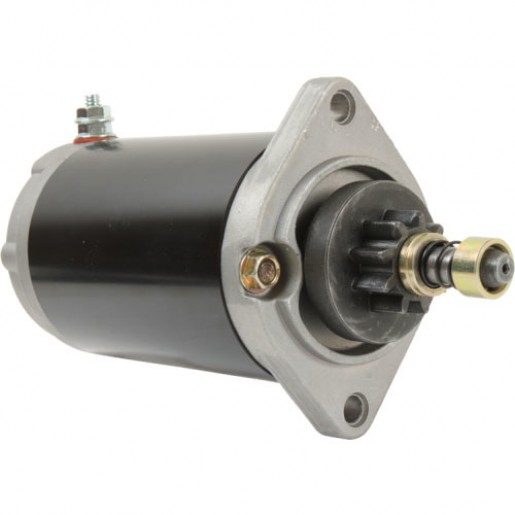

NEW Starter for ARCTIC CAT Snowmobile Applications; 410-21102, 0645-389, 0745-331, 0745-351, 0745-382, 0745-395, 0745-434, 0745-539; LESTER 5962
New UNITED TECHNOLOGIES Starter for ARCTIC CAT Snowmobiles
NEW Starter for ARCTIC CAT Snowmobile Applications; 410-21102, 0645-389, 0745-331, 0745-351, 0745-382, 0745-395, 0745-434, 0745-539; LESTER 5962 - Image 3

NEW Starter for ARCTIC CAT Snowmobile Applications; 410-21102, 0645-389, 0745-331, 0745-351, 0745-382, 0745-395, 0745-434, 0745-539; LESTER 5962

$159.99

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
ROTATION DIRECTION Clockwise
VOLT 12
NUMBER OF TEETH 9
GEAR OD 1.154″
GEAR OD 29.300mm
LENGTH 137 mm
LENGTH 5.394″
MOUNT HOLE ID 1 8.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
REGISTRY OD 2.421″
REGISTRY OD 61.500mm
WARRANTY 1 Year
ADD’L INFO 1/4-20 B+ Stud,
89.5mm Mounting Hole Center To Center

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARCTIC CAT 0645-389, 0745-331, 0745-351, 0745-382, 0745-395, 0745-434, 0745-539
ARROWHEAD SAB0165
J & N 410-21102
LESTER 5962

Part fit

Year Make Model Engine
Year Make Model Engine
2008 - 2013 ARCTIC CAT F570 565cc
2008 - 2014 ARCTIC CAT T570 565cc
2009 - 2013 ARCTIC CAT Bearcat 570 565cc
2009 - 2013 ARCTIC CAT Bearcat 570 XT 565cc
2011 - 2012 ARCTIC CAT Bearcat 570 LTD 565cc
2011 - 2013 ARCTIC CAT Bearcat 570 XT LTD 565cc
