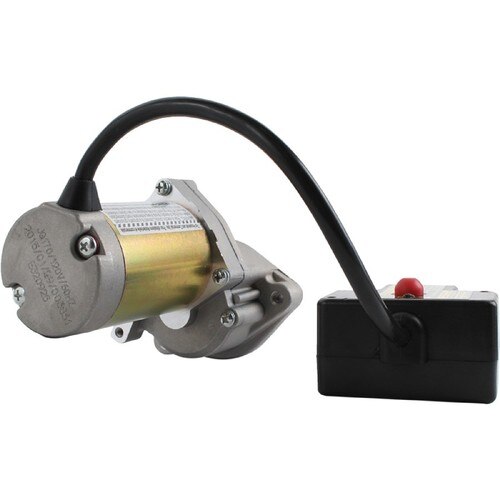

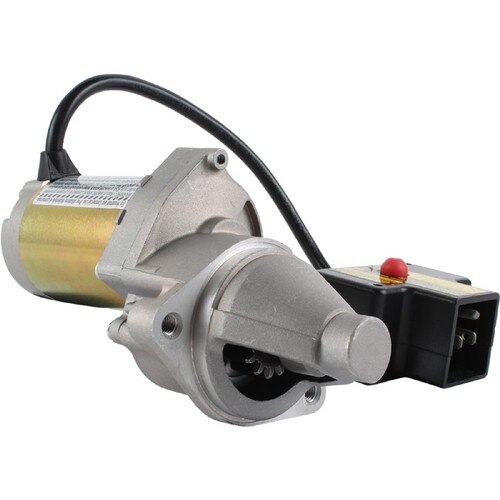

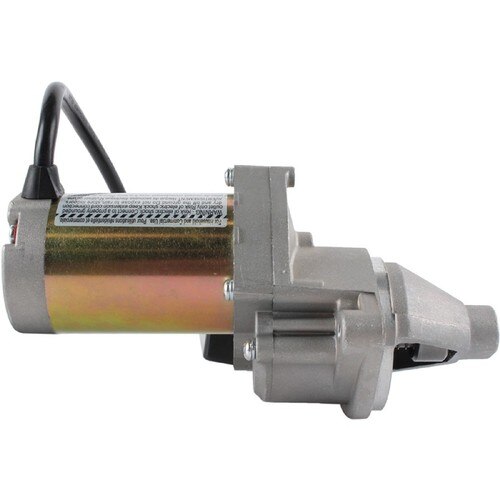

NEW Starter for BRIGGS & STRATTON Snowblowers; 410-22061, 1ACQD170B, ACQD170B; LESTER 19990
$229.13
USA PLUG
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 120 |
| NUMBER OF TEETH | 14 |
| LENGTH | 208 mm |
| LENGTH | 8.189″ |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNTING EAR DISTANCE 1 | 3.307″ |
| MOUNTING EAR DISTANCE 1 | 84mm |
| MOUNTING EAR DISTANCE 2 | 3.307″ |
| MOUNTING EAR DISTANCE 2 | 84mm |
| REGISTRY OD | 2.559″ |
| REGISTRY OD | 65mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0053 |
| J & N | 410-22061 |
| LESTER | 19990 |
| REFERENCE NUMBERS | 1ACQD170B, ACQD170B |
