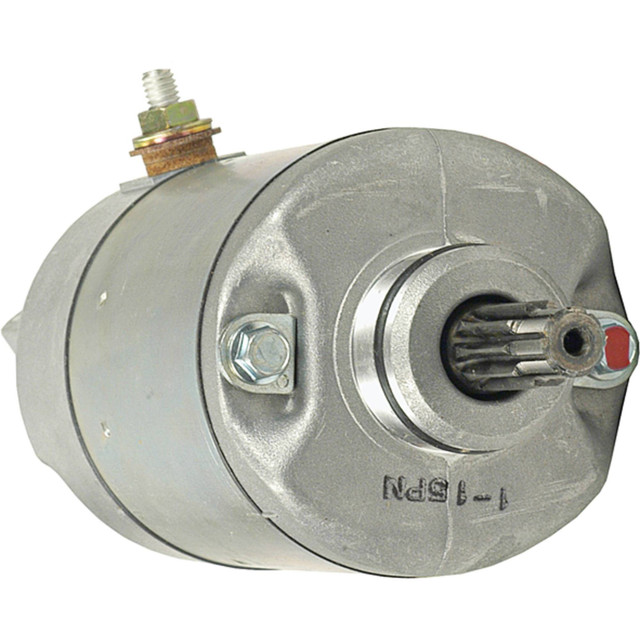

NEW Starter for HONDA ATC 250, TRX 250 & TRX 300 ATV; 410-54001, 31200HA0-773, 31200HA0-774, 31200HA6-306, 31200HA6-774, 31200HC4-003, 31200HC4-013, 31200HC4-023, 31200HC4-033, SM13213; LESTER 18337

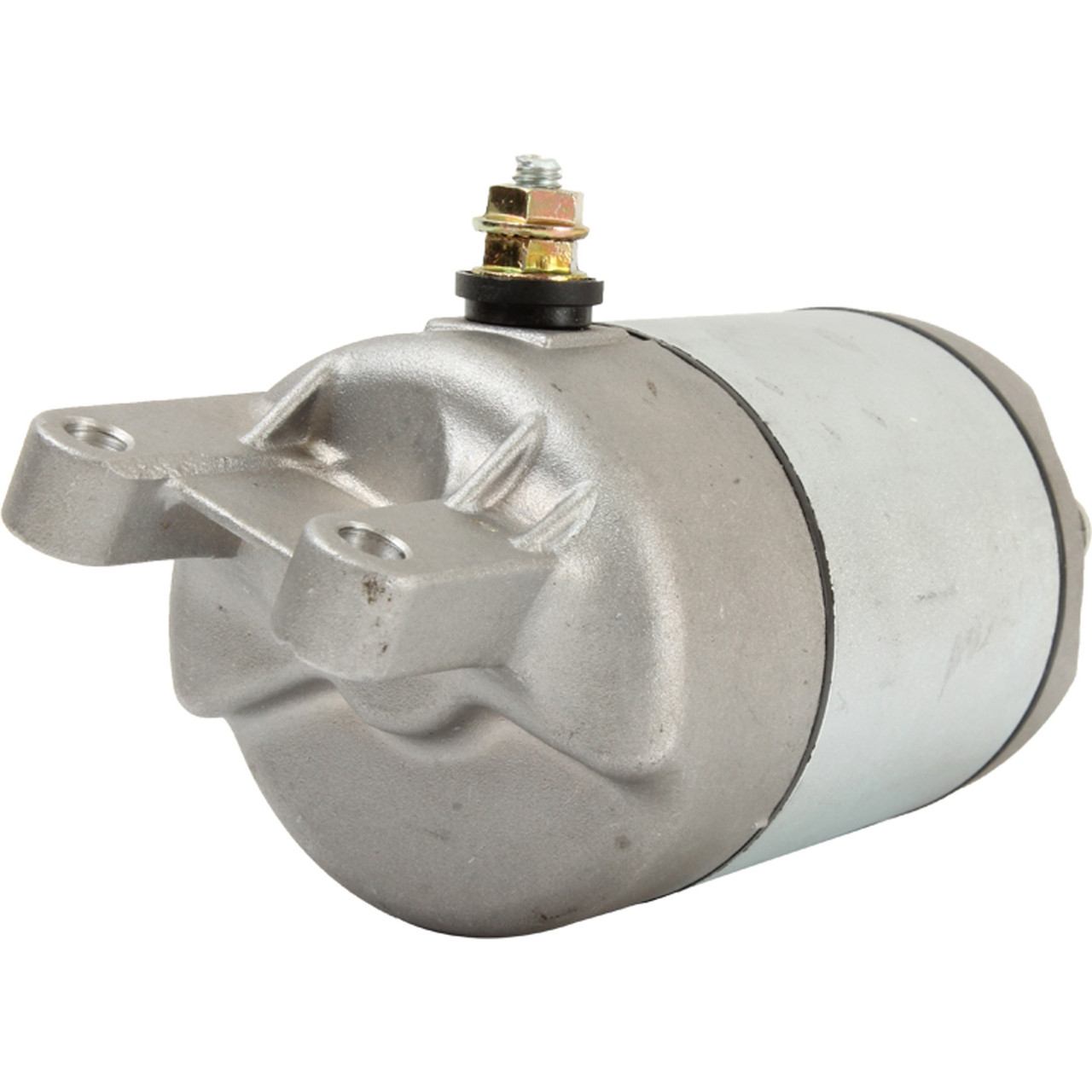

NEW Starter for HONDA ATC 250, TRX 250 & TRX 300 ATV; 410-54001, 31200HA0-773, 31200HA0-774, 31200HA6-306, 31200HA6-774, 31200HC4-003, 31200HC4-013, 31200HC4-023, 31200HC4-033, SM13213; LESTER 18337 - Image 2

NEW Starter for HONDA ATC 250, TRX 250 & TRX 300 ATV; 410-54001, 31200HA0-773, 31200HA0-774, 31200HA6-306, 31200HA6-774, 31200HC4-003, 31200HC4-013, 31200HC4-023, 31200HC4-033, SM13213; LESTER 18337

$89.99

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
FAMILY Mitsuba SM13
VOLT 12
ROTATION DIRECTION Counter Clockwise
NUMBER OF TEETH 10
GEAR OD 0.504″
GEAR OD 12.800mm
MOUNT HOLE ID 1 6.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SMU0028
HONDA 31200HA0-773, 31200HA0-774, 31200HA6-306, 31200HA6-774, 31200HC4-003, 31200HC4-013, 31200HC4-023, 31200HC4-033
LESTER 18337
LUCAS TVS SMU28
MITSUBA SM13213

Applications

Part fit

MAKE MODEL ENGINE YEAR
Honda ATC 250 ES  246cc 1987, 1988
Honda ATC 250 SX  246cc 1987
Honda TRX 250 Fourtrax  246cc 1987
Honda TRX 300 Fourtrax 2×4  281cc 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Honda TRX 300 FW Fourtrax 4×4  281cc 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Honda TRX 300  281cc 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
