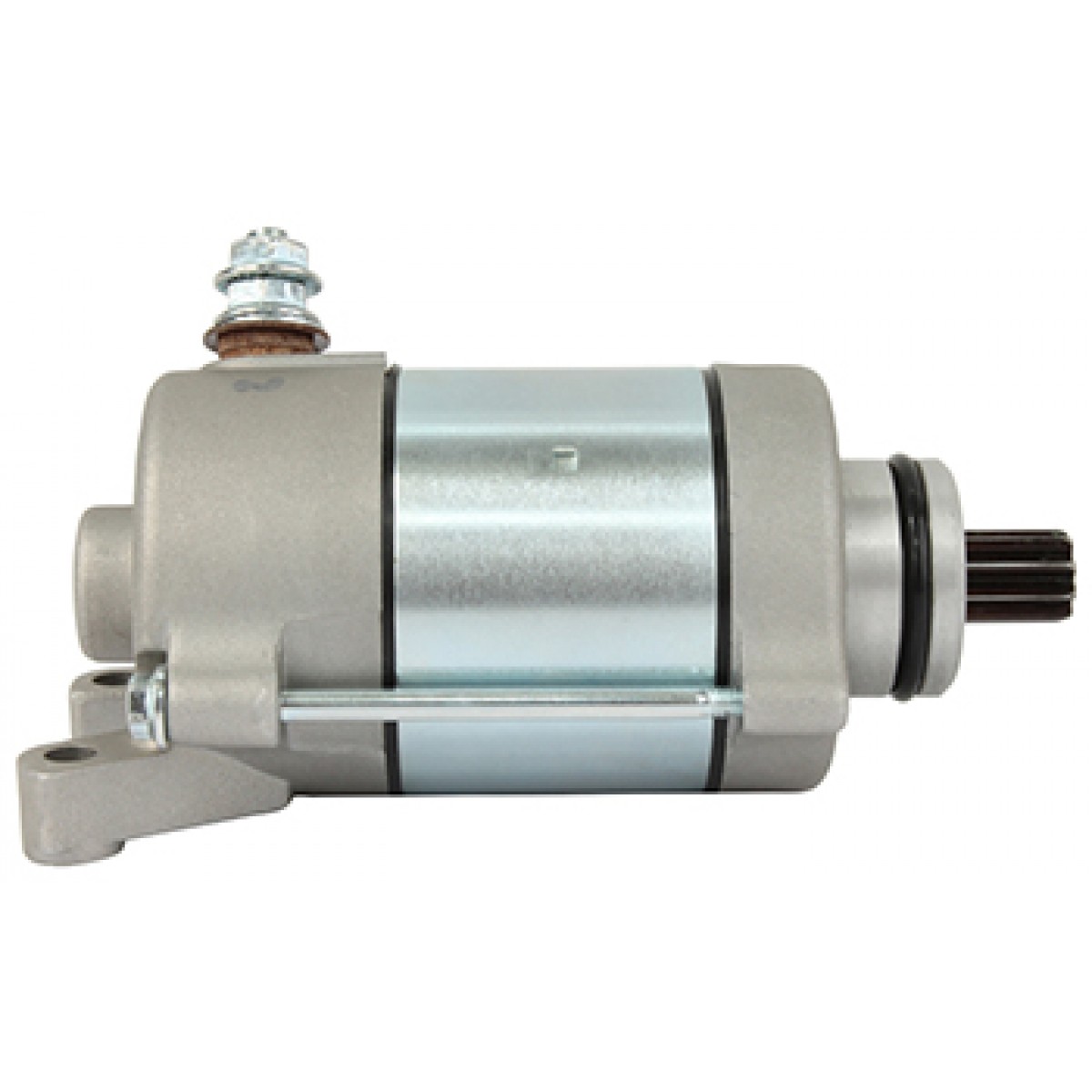

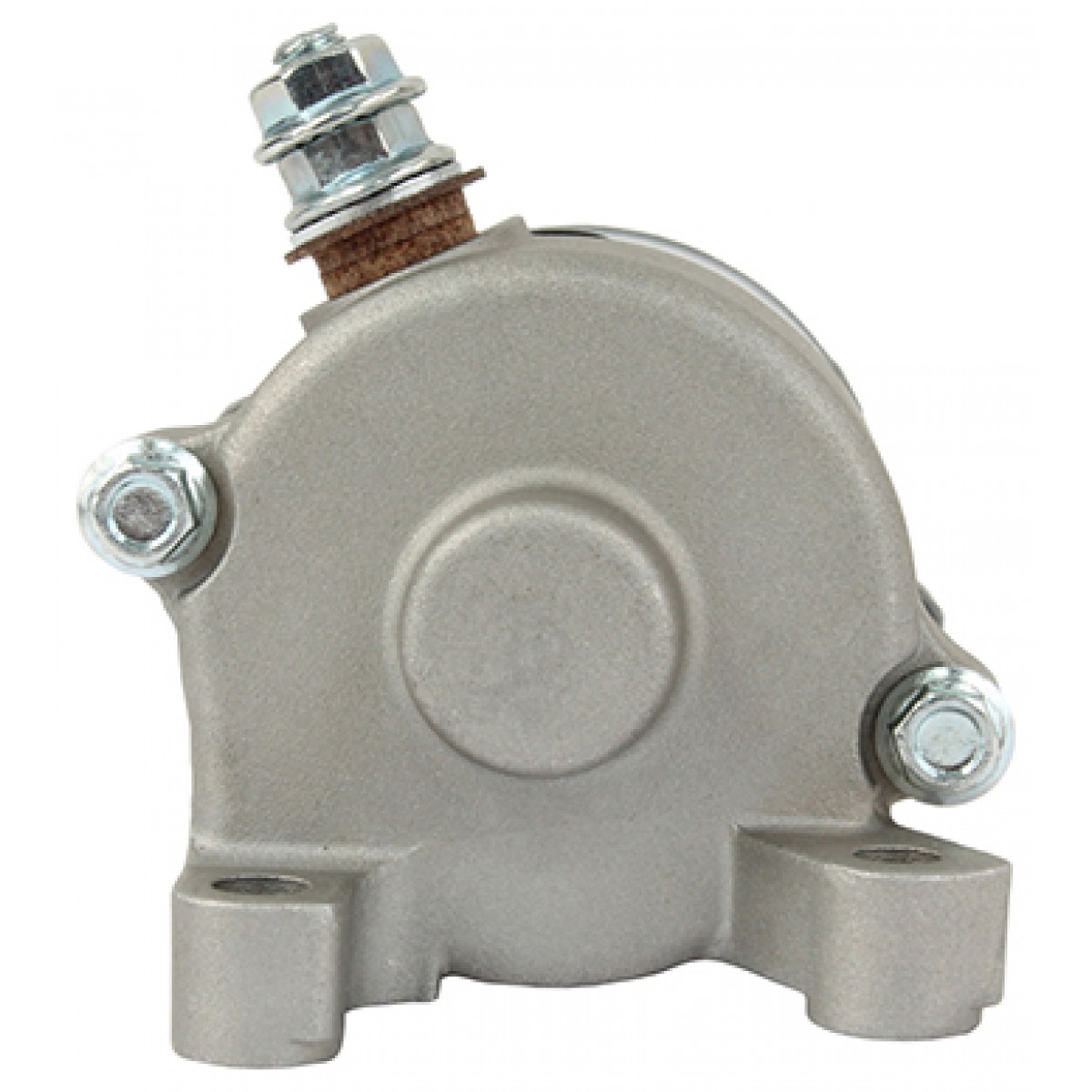

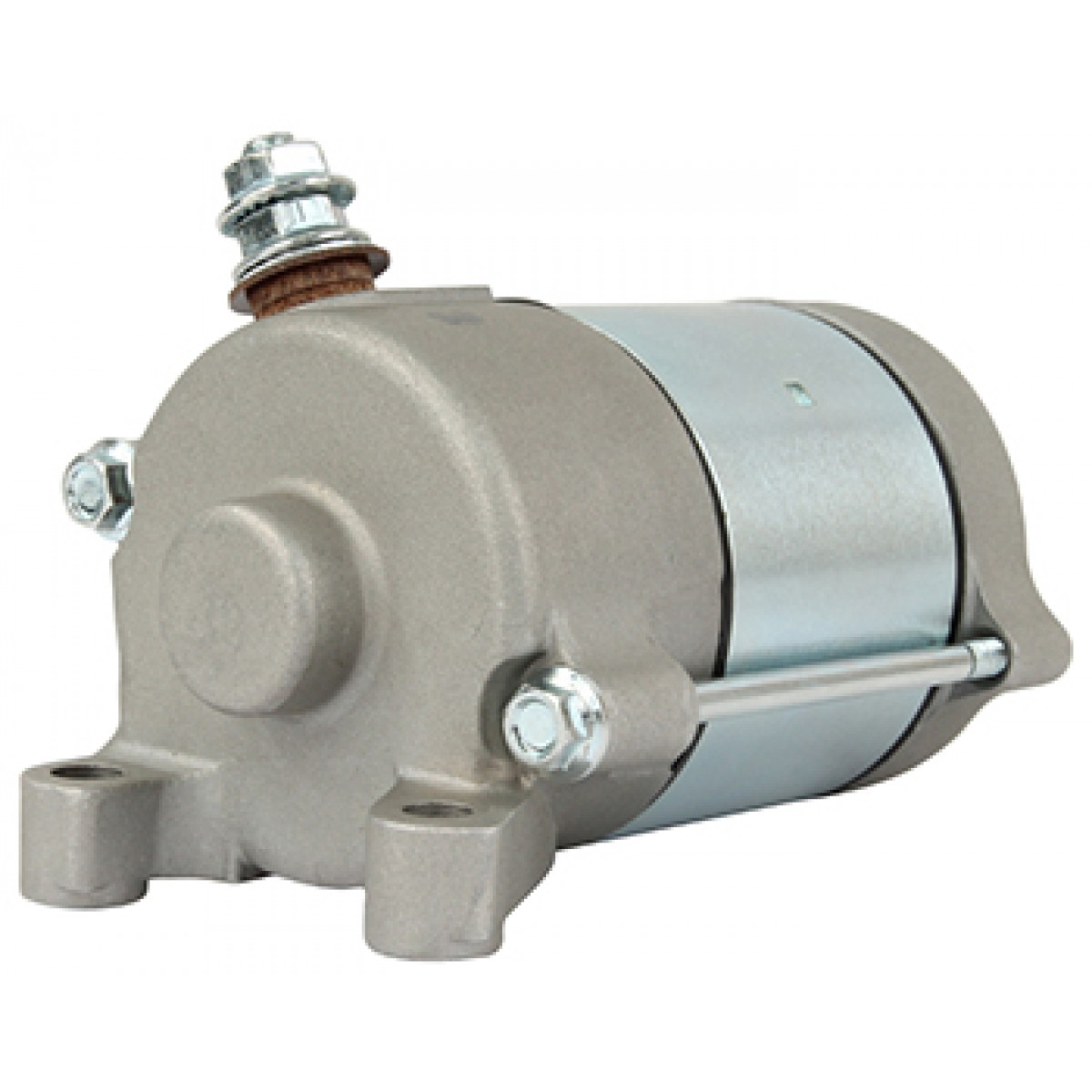

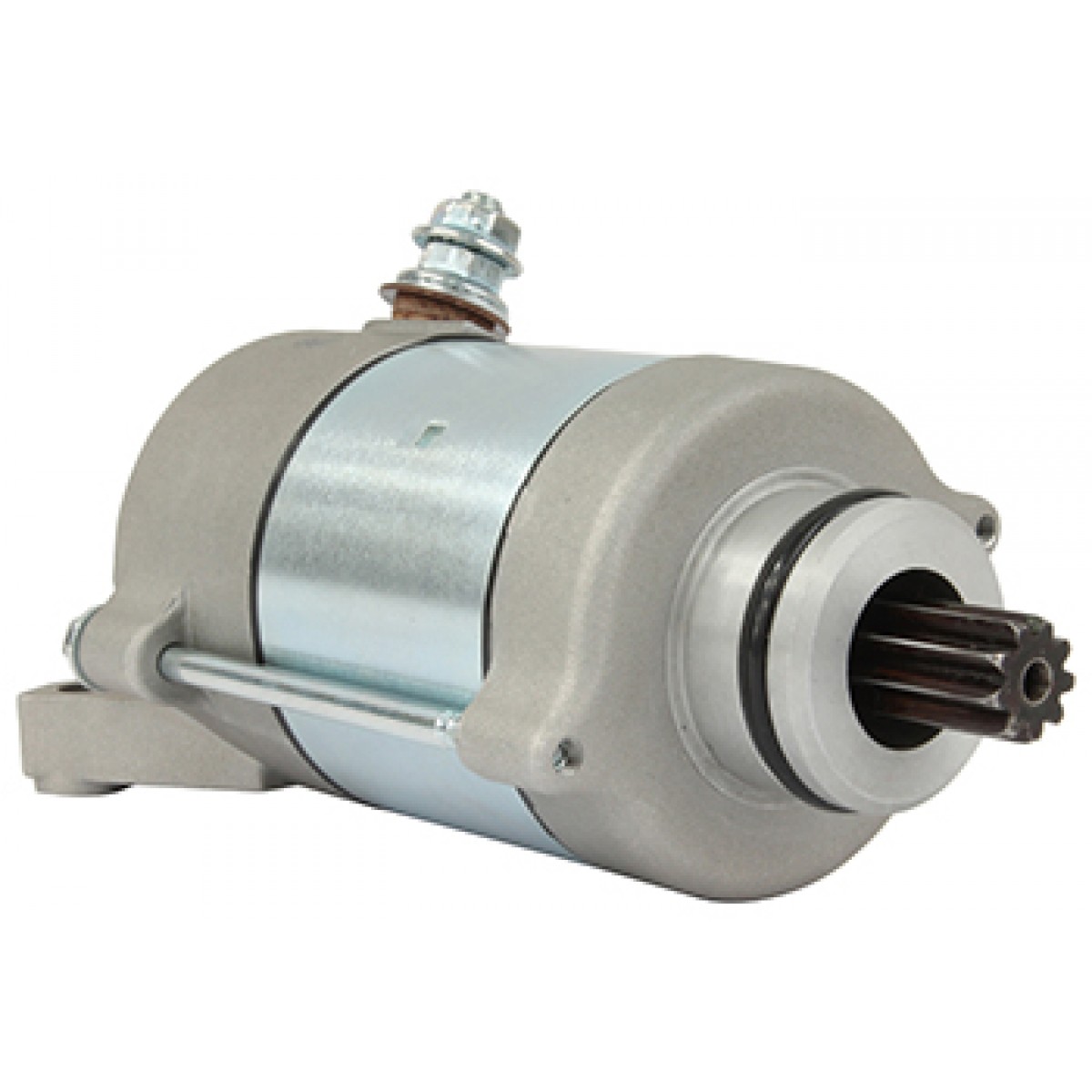

NEW Starter for HONDA CRF450X Dirt Bike; 410-54202, 31200MEY671; LESTER 18852
$209.99
Specifications
| UNIT |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.457″ |
| GEAR OD |
11.600mm |
| LENGTH |
3.807″ |
| LENGTH |
96.700 mm |
| MOUNT HOLE ID 1 |
7.300mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| REGISTRY OD |
1.165″ |
| REGISTRY OD |
29.600mm |
| MOUNTING EAR DISTANCE 1 |
1.713″ |
| MOUNTING EAR DISTANCE 1 |
43.500mm |
| WARRANTY |
1 Year |
|
M6-1.0 Threaded B+ Connection |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0373 |
| HI LEVEL |
STH0373 |
| HONDA |
31200MEY671 |
| LESTER |
18852 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 2005 - 2015 |
HONDA |
CRF450X |
449cc |
| 2017 |
HONDA |
CRF450X |
449cc |
