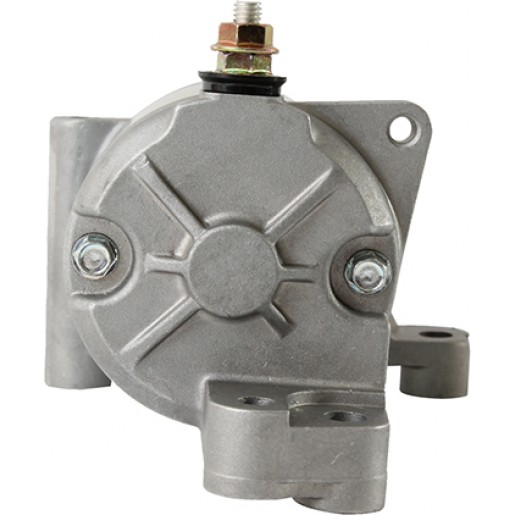

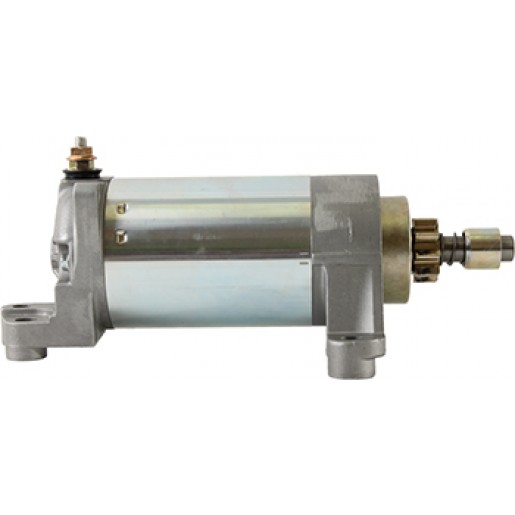

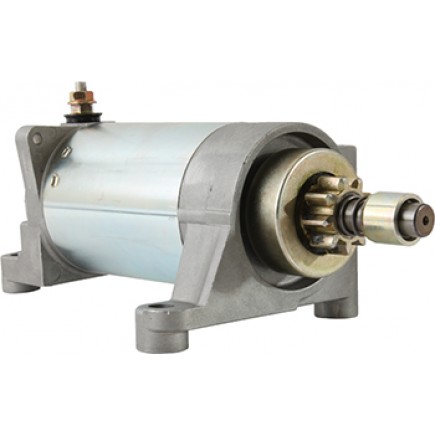

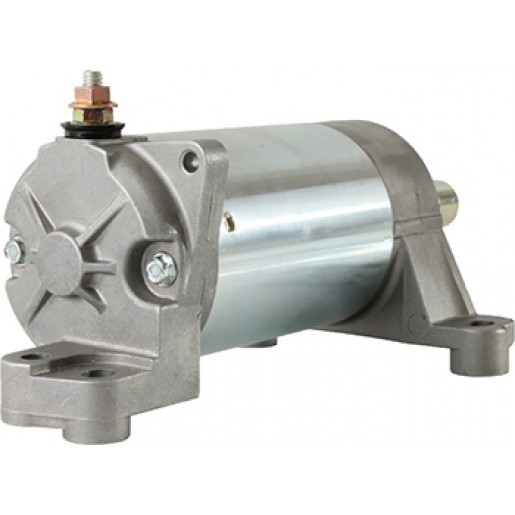

NEW Starter for LYNX & SKI-DOO Snowmobile Applications; 410-52372, 515-176-103, 515-176-585, 428000-3150, 428000-3151, 515-176-103; LESTER 18876
NEW Starter for LYNX & SKI-DOO Snowmobile Applications; 410-52372, 515-176-103, 515-176-585, 428000-3150, 428000-3151, 515-176-103; LESTER 18876 - Image 2
NEW Starter for LYNX & SKI-DOO Snowmobile Applications; 410-52372, 515-176-103, 515-176-585, 428000-3150, 428000-3151, 515-176-103; LESTER 18876 - Image 3
NEW Starter for LYNX & SKI-DOO Snowmobile Applications; 410-52372, 515-176-103, 515-176-585, 428000-3150, 428000-3151, 515-176-103; LESTER 18876 - Image 4

NEW Starter for LYNX & SKI-DOO Snowmobile Applications; 410-52372, 515-176-103, 515-176-585, 428000-3150, 428000-3151, 515-176-103; LESTER 18876

$211.98

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
ROTATION DIRECTION Clockwise
VOLT 12
NUMBER OF TEETH 9
GEAR OD 1.134″
GEAR OD 28.800mm
MOUNT HOLE ID 1 8.400mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.600mm
MOUNT HOLE 3 TYPE Unthreaded
WARRANTY 1 Year



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SND0608
BOMBARDIER 515-176-103, 515-176-585
DENSO 428000-3150, 428000-3151
J&N 410-52372
LESTER 18876
SEA-DOO 515-176-103
WILSON SMALL ENGINE 71-29-18876

Part fit

Year Make Model Engine
Year Make Model Engine
2004 - 2007 SKI-DOO Summit 550 Fan 553cc
2005 - 2006 SKI-DOO Expedition 550F 553cc
2005 - 2007 SKI-DOO GSX 550F 553cc
2005 - 2007 SKI-DOO GTX 550F 553cc
2006 - 2007 LYNX Adventure LX 550F 553cc
2006 SKI-DOO MX Z 550 F X 553cc
2007 LYNX Rave 550 553cc
2007 LYNX ST-600 597cc
2007 LYNX YETI 600HO TUV SDI 594cc
2007 SKI-DOO Expedition 550F Sport 553cc
2007 SKI-DOO Freestyle 550F 550cc
2007 SKI-DOO Freestyle Backcountry 550F 550cc
2007 SKI-DOO Freestyle Park 550F 550cc
2007 SKI-DOO Freestyle Session 550F 550cc
2007 SKI-DOO MX Z 550 F 553cc
2007 SKI-DOO MX Z 550 X 553cc
