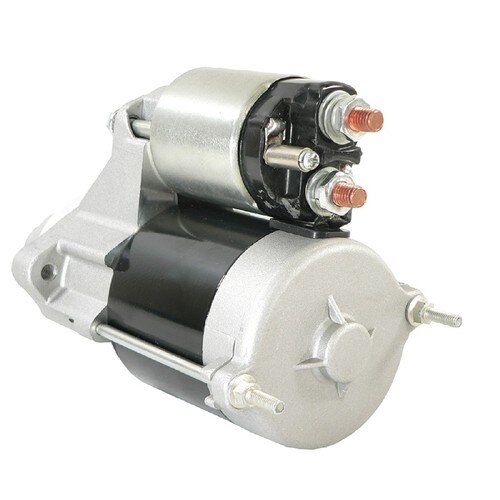

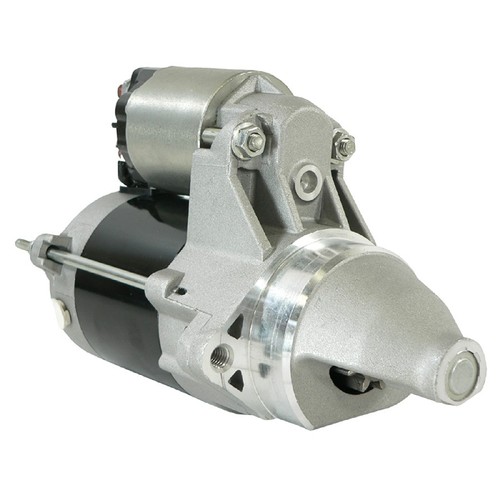

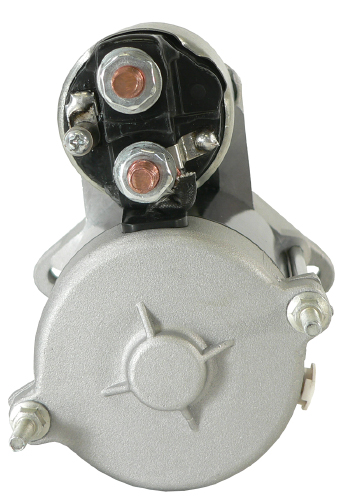

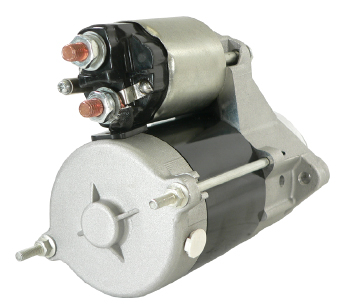

NEW Starter for LYNX, SKI DOO Snowmobiles; 410-52419, 515-175-141, 515-175-795, 228000-8290, 228000-8291, 428000-1000; LESTER 18873
$199.29
Specifications
| UNIT TYPE | Starter Drive Assembly |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| POWER | 0.600 kw |
| HP | 0.805 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.142″ |
| GEAR OD | 29mm |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0584 |
| BOMBARDIER | 515-175-141, 515-175-795 |
| DENSO | 228000-829, 228000-8290, 228000-8291, 428000-100, 428000-1000 |
| J & N | 410-52419 |
| LESTER | 18873 |
| MPA SMALL MOTOR | P695N |
| SEA-DOO | 515-175-141, 515-175-795 |
| TUCKER ROCKY | 46-4265 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2002 - 2003 | SKI-DOO | Grand Touring 380F | 377cc |
| 2002 | SKI-DOO | Grand Touring 500F | 503cc |
| 2002 - 2003 | SKI-DOO | Legend 380F | 494cc |
| 2002 - 2004 | SKI-DOO | Legend 380F | 377cc |
| 2002 - 2006 | SKI-DOO | MX Z 380 F | 377cc |
| 2002 | SKI-DOO | MX Z 500 F | 494cc |
| 2003 | LYNX | Ranger FCE | All |
| 2003 | SKI-DOO | Grand Touring 550F | 553cc |
| 2003 - 2004 | SKI-DOO | Legend 550F | 553cc |
| 2003 | SKI-DOO | MX Z 550 F | 553cc |
| 2003 | SKI-DOO | Summit 550 Fan | 553cc |
| 2004 - 2007 | SKI-DOO | Skandic 550F SUV | 553cc |
| 2004 - 2007 | SKI-DOO | Skandic Super Wide Track 550F | 553cc |
| 2004 - 2007 | SKI-DOO | Skandic Wide Track 550F | 550cc |
