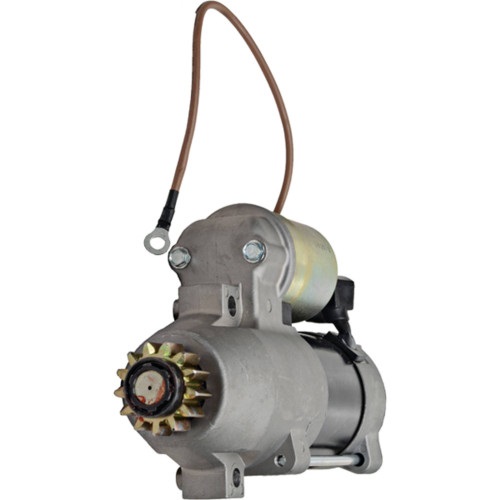

New Starter for MERCURY MARINE & YAMAHA 75, 90, 100, & 115 hp Engine - Marine Outboard; 410-44072, 50-881368T, 50-881368T1, 50-881368T2, 881368T1, 881368T2, [YAMAHA 68V81800-00, 68V81800-01, 68V8180002]; LESTER 18349

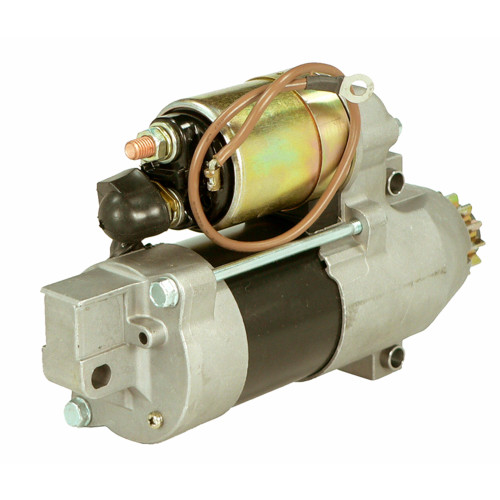

New Starter for MERCURY MARINE & YAMAHA 75, 90, 100, & 115 hp Engine - Marine Outboard; 410-44072, 50-881368T, 50-881368T1, 50-881368T2, 881368T1, 881368T2, [YAMAHA 68V81800-00, 68V81800-01, 68V8180002]; LESTER 18349 - Image 2

New Starter for MERCURY MARINE & YAMAHA 75, 90, 100, & 115 hp Engine – Marine Outboard; 410-44072, 50-881368T, 50-881368T1, 50-881368T2, 881368T1, 881368T2, [YAMAHA 68V81800-00, 68V81800-01, 68V8180002]; LESTER 18349

$298.46





Categories: ,

Specifications

UNIT TYPE Starter
VOLT 12
POWER 1.400 kw
HP 1.877
ROTATION DIRECTION Counter Clockwise
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
NUMBER OF TEETH 13
GEAR OD 1.567″
GEAR OD 39.800mm
MOUNT HOLE ID 1  & 3 8.800mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE & 3 TYPE Unthreaded
WARRANTY 1 Year
ADD’L INFO Battery Stud M8-1.25 Threaded, 180mm Switch Terminal Lead, External Thru Bolts



WRITE YOUR OWN REVIEW


We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]



Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD S114-838A, S114-838B, SHI0132
EMP 4-6427
HITACHI S114-838A, S114-838B, S114-838BN, S114-838CN
J&N ELECTRICAL PRODUCTS 410-44072
LESTER 18349
LUCAS ELECTRIC LRS04070
MERCURY MARINE 50-881368T, 50-881368T1, 50-881368T2, 881368T1, 881368T2
SIERRA MARINE 18-6427
YAMAHA 68V81800-00, 68V81800-01, 68V8180002

Applications

YEAR MAKE MODEL ENGINE
All MERCURY MARINE 100.0HP / EFI – SN 1B227000 Thru 1B366822 100.0HP
All MERCURY MARINE 115.0HP / EFI – SN 0T178500 Thru 0T800999 115.0HP
All MERCURY MARINE 115.0HP / EFI – SN 0T801000 Thru 1B226999 115.0HP
All MERCURY MARINE 115.0HP / EFI – SN 1B227000 Thru 1B366822 115.0HP
All MERCURY MARINE 75.0HP / EFI – SN 1B172291 Thru 1B366822 75.0HP
All MERCURY MARINE 80.0HP / EFI – SN 1B227000 Thru 1B366822 80.0HP
All MERCURY MARINE 90.0HP / EFI – SN 1B172291 Thru 1B366822 90.0HP
2013 – 2020 MERCURY MARINE 115ELPT 4-Stroke 115HP
2001 – 2012 MERCURY MARINE 115ELPT EFI 4-Stroke 115HP
2004, 2005 MERCURY MARINE 115ELPT EFI Saltwater 4-Stroke 115HP
2013 – 2020 MERCURY MARINE 115EXLPT 4-Stroke 115HP
2006 – 2012 MERCURY MARINE 115EXLPT EFI 4-Stroke 115HP
2001 – 2005 MERCURY MARINE 115EXLPT EFI Saltwater 4-Stroke 115HP
2013 – 2020 MERCURY MARINE 75ELPT 4-Stroke 75HP
2006 – 2012 MERCURY MARINE 75ELPT EFI 4-Stroke 75HP
2009 – 2014 MERCURY MARINE 80ELPT Jet Optimax 80HP
2013 – 2020 MERCURY MARINE 90ELPT 4-Stroke 90HP
2006 – 2012 MERCURY MARINE 90ELPT EFI 4-Stroke 90HP
2013 – 2020 MERCURY MARINE 90EXLPT 4-Stroke 90HP
2006 – 2012 MERCURY MARINE 90EXLPT EFI 4-Stroke 90HP
2012 – 2015 YAMAHA F115JA 115HP
2012 – 2015 YAMAHA F115LA 115HP
2002 – 2011 YAMAHA F115TJR 115HP
2000 – 2011 YAMAHA F115TLR 115HP
2000 – 2011 YAMAHA F115TXR 115HP
2012 – 2015 YAMAHA F115XA 115HP
2013 – 2018 YAMAHA F75LA 75HP
2005 – 2012 YAMAHA F75TLR 75HP
2013 – 2018 YAMAHA F90JA 90HP
2013 – 2018 YAMAHA F90LA 90HP
2005 – 2012 YAMAHA F90TJR 90HP
2005 – 2012 YAMAHA F90TLR 90HP
2005 – 2012 YAMAHA F90TXR 90HP
2013 – 2018 YAMAHA F90XA 90HP
2000 – 2012 YAMAHA LF115TXR 115HP
2012 – 2015 YAMAHA LF115XA 115HP
