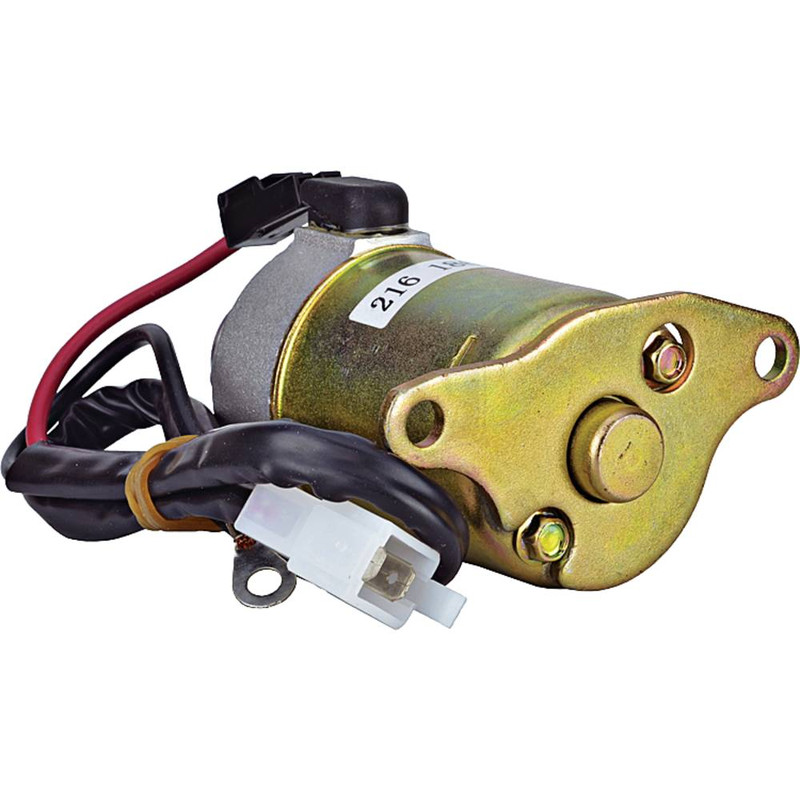

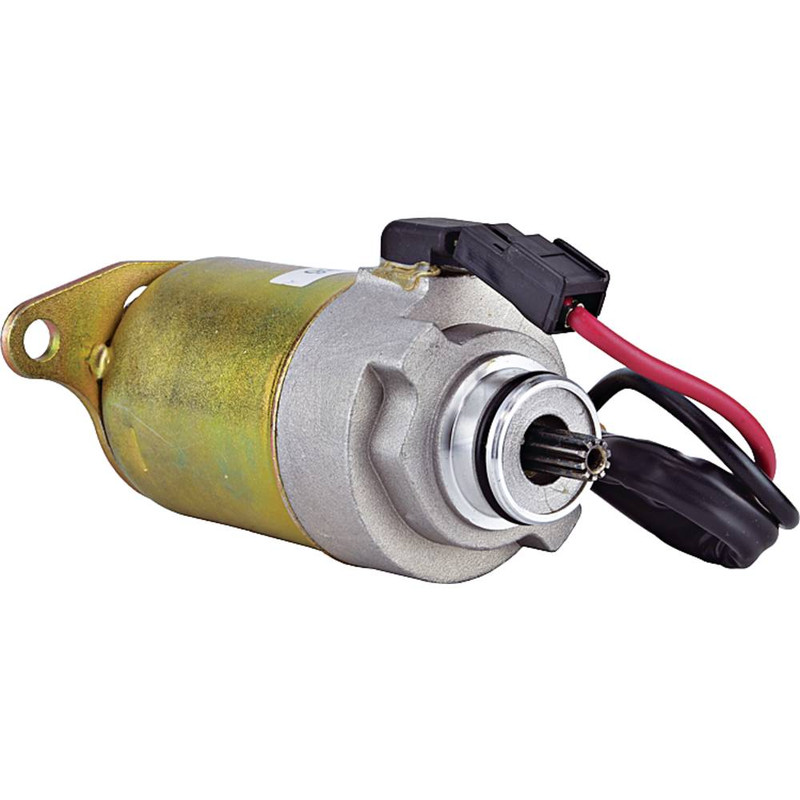

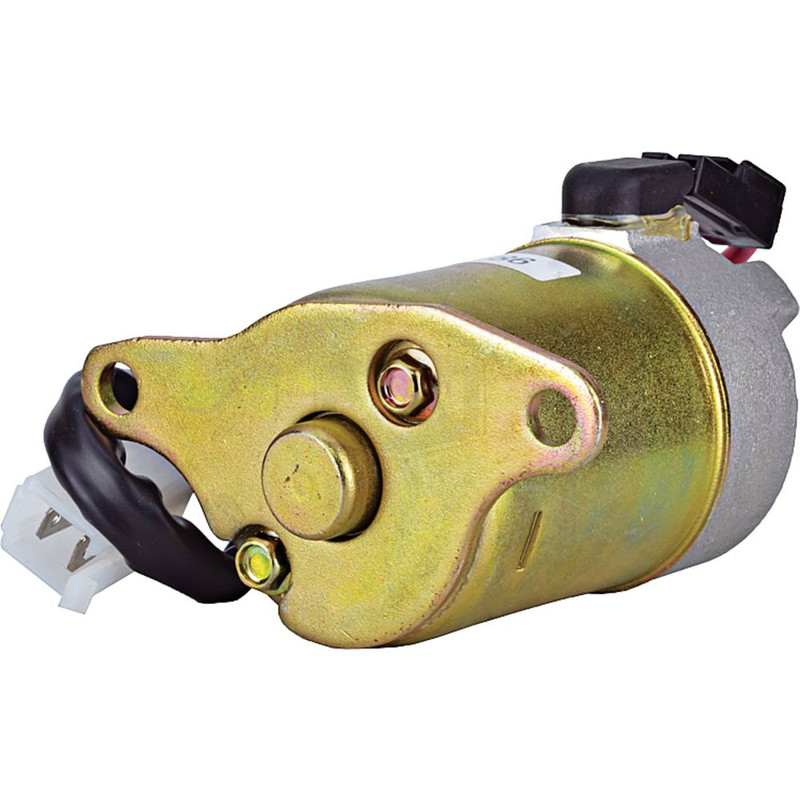

NEW Starter for PEUGEOT Speedfight 50 Scooter, 2010-13 ; 410-58095, 801638, 31200A1A000, 31200AWA000; LESTER 37019A
$109.99
Specifications
| Unit Type | Starter |
| Part Type | Permanent Magnet Direct Drive (PMDD) |
| Voltage | 12 |
| Rotation | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 0.283″/ 7.200mm |
| LENGTH | 4.331″/ 110 mm |
| MOUNT HOLE ID 1 | 6.900mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| REGISTRY OD | 0.941″/ 23.900mm |
| MOUNTING EAR DISTANCE 2 | 2.772″/ 70.400mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0098 |
| J & N | 410-58095 |
| PEUGEOT | 801638 |
| HI LEVEL | STP0098 |
| SOCIETA GENERALE RICAMBI | 17.81147 |
| SYM | 31200A1A000, 31200-A1A-000, 31200AWA000, 31200-AWA-000 |
