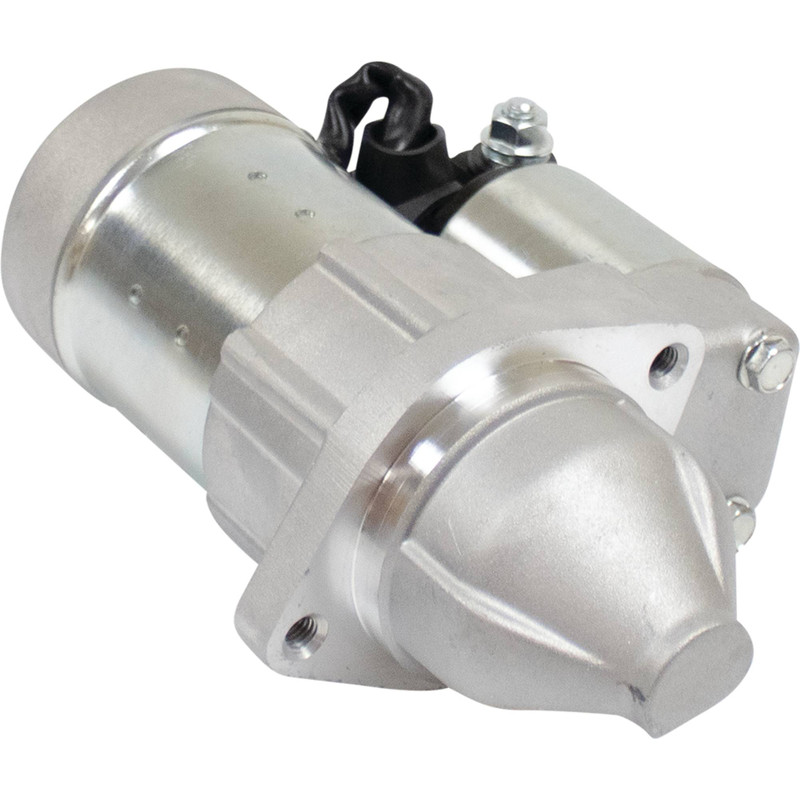

NEW Starter for SUZUKI Engine – Marine Outboard; 410-44101, 31100-93J00, 31100-93J01, 31100-96J00, 31100-96J01, 31100-96J02; LESTER 19707

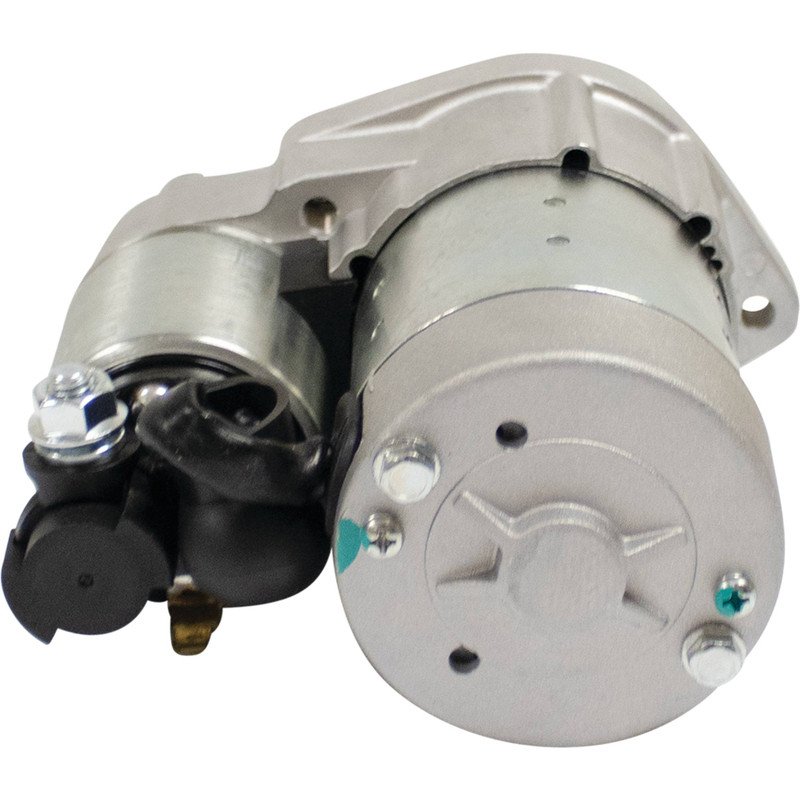

NEW Starter for SUZUKI Engine – Marine Outboard; 410-44101, 31100-93J00, 31100-93J01, 31100-96J00, 31100-96J01, 31100-96J02; LESTER 19707 - Image 2

NEW Starter for SUZUKI Engine – Marine Outboard; 410-44101, 31100-93J00, 31100-93J01, 31100-96J00, 31100-96J01, 31100-96J02; LESTER 19707

$179.99

Categories: , , ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Gear Reduction (PMGR)
ROTATION DIRECTION Clockwise
VOLT 12
NUMBER OF TEETH 9
GEAR OD 1.126″
GEAR OD 28.600mm
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE ID 2 M8x1.25
MOUNT HOLE 2 TYPE Threaded
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SHI0188
EMP 4-6941
HITACHI S114-868B
J&N 410-44101
LESTER 19707
MERCURY MARINE 8M6007388
SUZUKI 31100-93J00, 31100-93J01, 31100-96J00, 31100-96J01, 31100-96J02

Applications

Make Model Engine Years
Suzuki DF200T 220CI 2004 – 2011
Suzuki DF200Z 220CI 2004 – 2011
Suzuki DF225T 220CI 2004 – 2011
Suzuki DF225Z 220CI 2004 – 2011
Suzuki DF250T 220CI 2004 – 2011
Suzuki DF250Z 220CI 2004 – 2011
