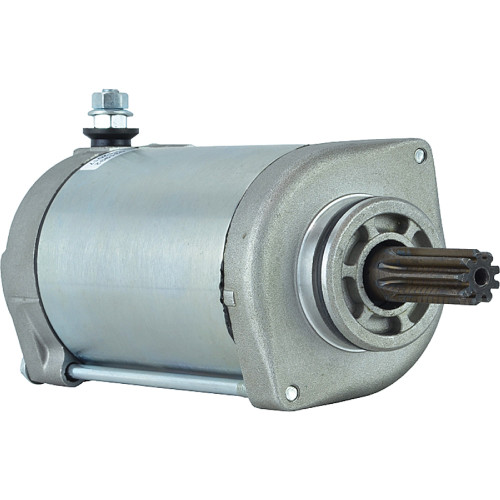

NEW Starter for SUZUKI V-Strom 1000, V-Strom 1000 ABS, SV1000 & SV1000S Motorcycles 2002 - 12; 410-52571, 428000-1110, 428000-1111, 31100-06G00, 31100-06G01; LESTER 18885

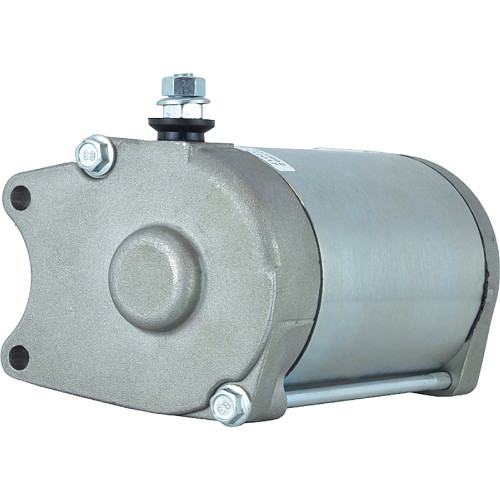

NEW Starter for SUZUKI V-Strom 1000, V-Strom 1000 ABS, SV1000 & SV1000S Motorcycles 2002 - 12; 410-52571, 428000-1110, 428000-1111, 31100-06G00, 31100-06G01; LESTER 18885 - Image 2
NEW Starter for SUZUKI V-Strom 1000, V-Strom 1000 ABS, SV1000 & SV1000S Motorcycles 2002 - 12; 410-52571, 428000-1110, 428000-1111, 31100-06G00, 31100-06G01; LESTER 18885 - Image 3

NEW Starter for SUZUKI V-Strom 1000, V-Strom 1000 ABS, SV1000 & SV1000S Motorcycles 2002 – 12; 410-52571, 428000-1110, 428000-1111, 31100-06G00, 31100-06G01; LESTER 18885

$124.99

Info: The Suzuki V-Strom 1000 is also known as the DL1000.

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 9
GEAR OD 0.551″
GEAR OD 14mm
LENGTH 135 mm
LENGTH 5.315″
MOUNT HOLE ID 1 6.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR DISTANCE 1 1.614″
MOUNTING EAR DISTANCE 1 41mm
REGISTRY OD 1.575″
REGISTRY OD 40mm
WARRANTY 1 Year
ADD’L INFO M6 B+ Stud

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD 410-52571, SMU0400, SND0791
DENSO 428000-1110, 428000-1111
LESTER 18885
SUZUKI 31100-06G00, 31100-06G01

Part fit

Year Make Model Engine
Year Make Model Engine
2002 - 2012 SUZUKI V-Strom 1000 996cc
2003 - 2007 SUZUKI SV1000 996cc
2003 - 2007 SUZUKI SV1000S 996cc
2013 - 2018 SUZUKI V-Strom 1000 ABS 1037cc
