NEW Starter for YAMAHA TTR125 Dirt Bike 2003-07; 410-58028, 5HH81890-00-00; LESTER 19629

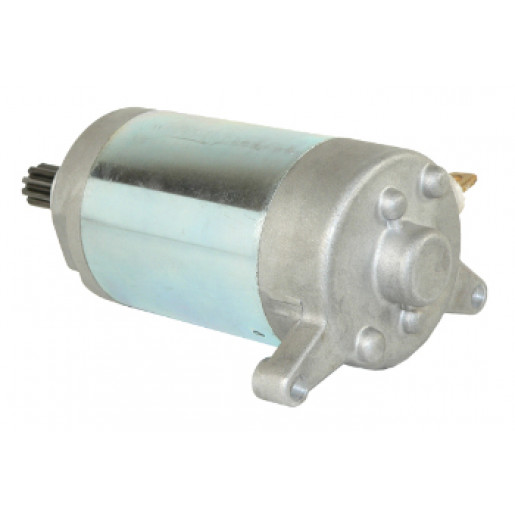

NEW Starter for YAMAHA TTR125 Dirt Bike 2003-07; 410-58028, 5HH81890-00-00; LESTER 19629 - Image 2

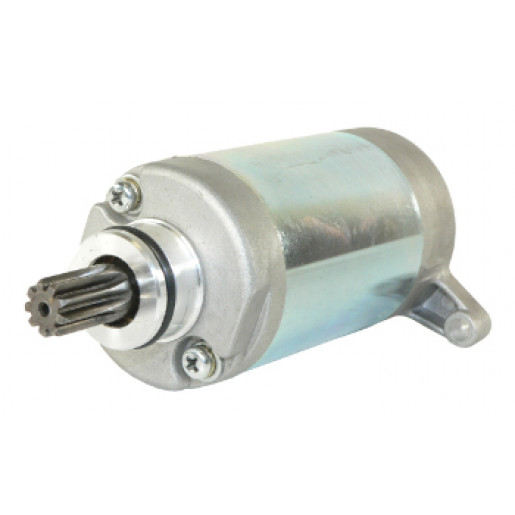

NEW Starter for YAMAHA TTR125 Dirt Bike 2003-07; 410-58028, 5HH81890-00-00; LESTER 19629 - Image 3

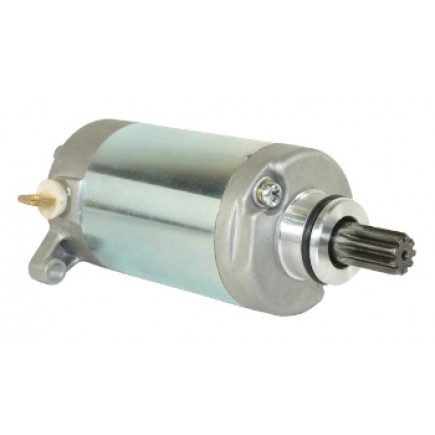

NEW Starter for YAMAHA TTR125 Dirt Bike 2003-07; 410-58028, 5HH81890-00-00; LESTER 19629 - Image 4

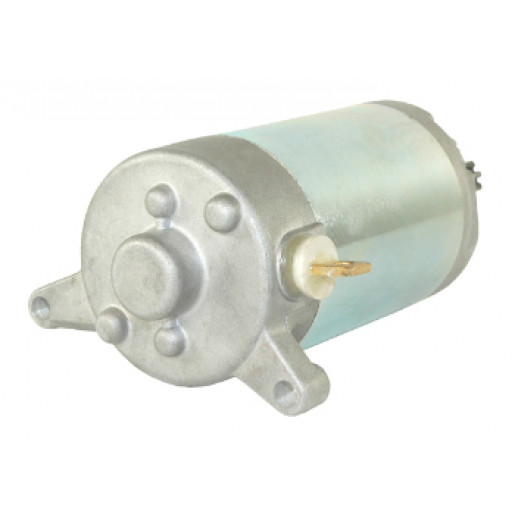

NEW Starter for YAMAHA TTR125 Dirt Bike 2003-07; 410-58028, 5HH81890-00-00; LESTER 19629

$109.99

Categories: , ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Counter Clockwise
NUMBER OF TEETH 9
GEAR OD 0.563″
GEAR OD 14.300mm
MOUNT HOLE ID 1 6.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year
Battery Tab on Commutator End

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SCH0045, SMU0351
HI LEVEL 219528, STY0045
J&N ELECTRICAL PRODUCTS 410-58028
LESTER 19629
YAMAHA 5HH81890-00-00
