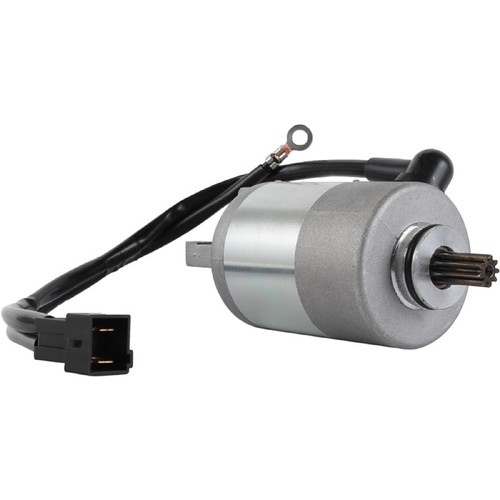

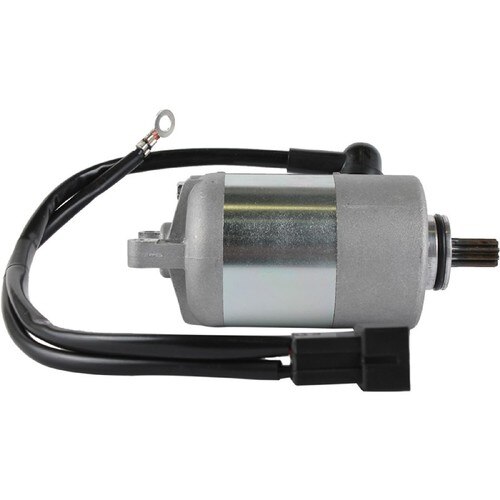

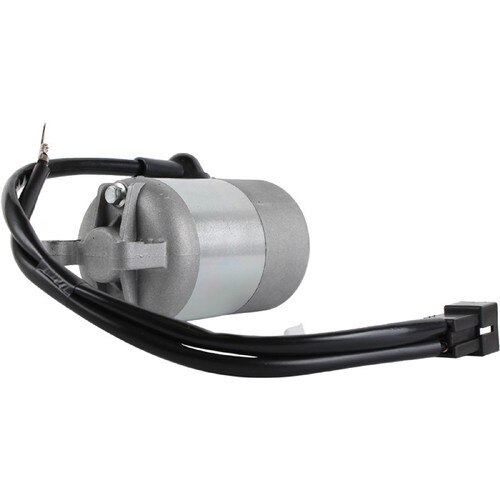

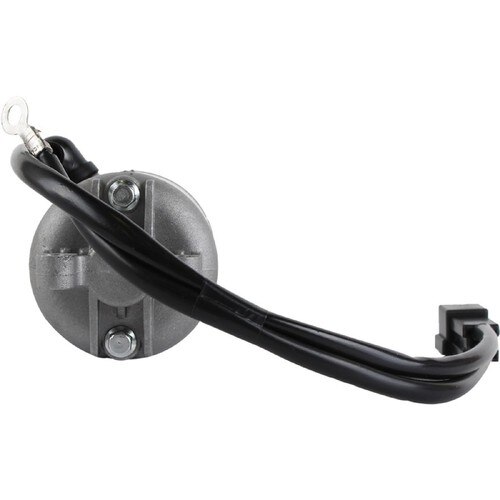

NEW Starter for YAMAHA Zuma 125 YW125 Scooters; 410-54186, 5S9H1800-00-00; LESTER 16090
$99.99
SEARCH: 485958 (VERY SIMILAR, BUT SPLINES SHAFT SHORTER, DIFFERENT BATTERY WIRE, B+ STUD IN SLIGHTLY DIFFERENT LOCATION)
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.449″ |
| GEAR OD | 11.400mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0538 |
| HI LEVEL | STY0538 |
| J&N ELECTRICAL PRODUCTS | 410-54186 |
| LESTER | 16090 |
| YAMAHA | 5S9H1800-00-00 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2009 - 2015 | YAMAHA | Zuma 125 YW125 | 125cc |
