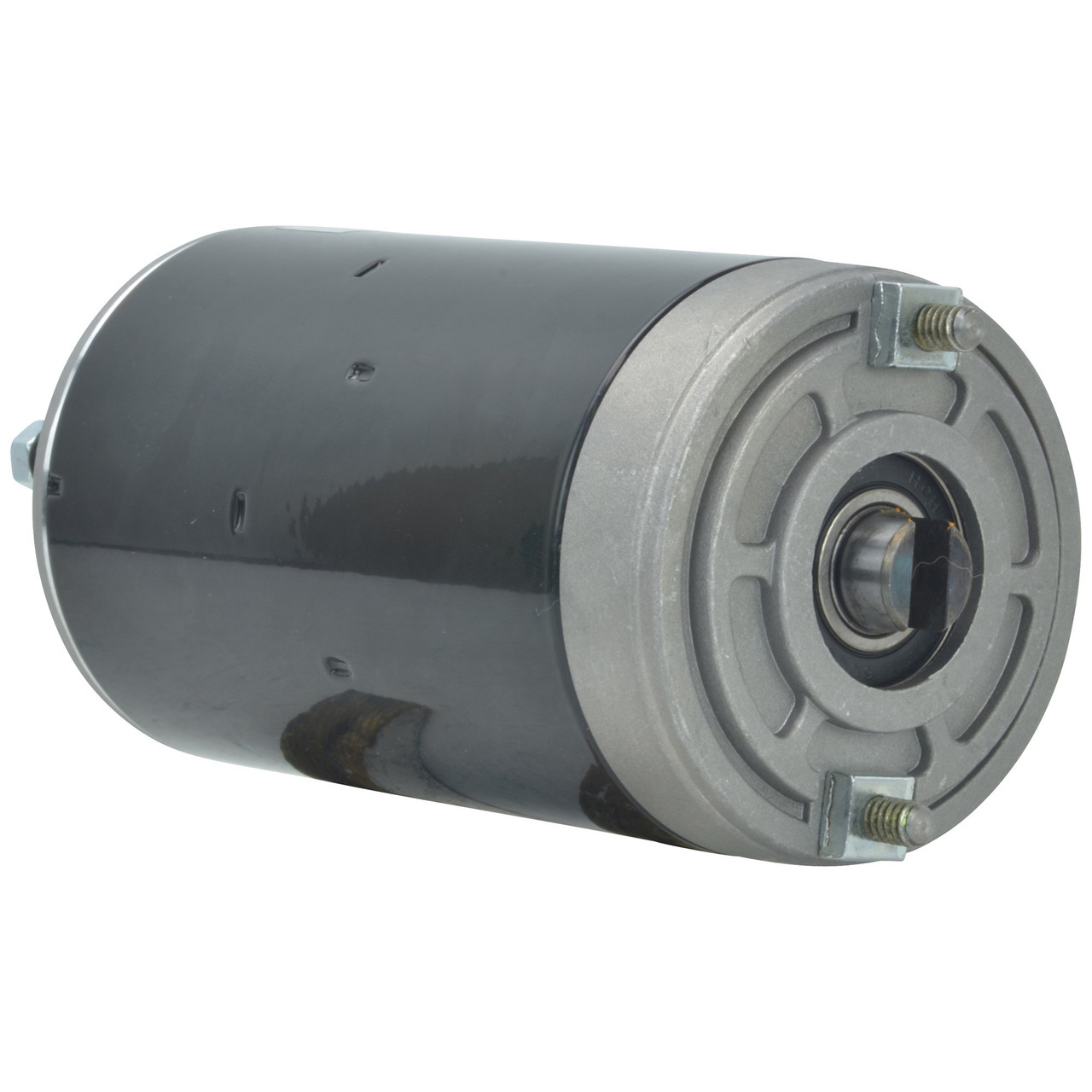

NEW Pump Motor for MONARCH EQUIPMENT; 430-22046, 1330185; LESTER 10762
$139.99
ADD’L INFO: Ball Bearing Type
Specifications
| UNIT/PART TYPE | Pump Motor |
| CURRENT TYPE | DC |

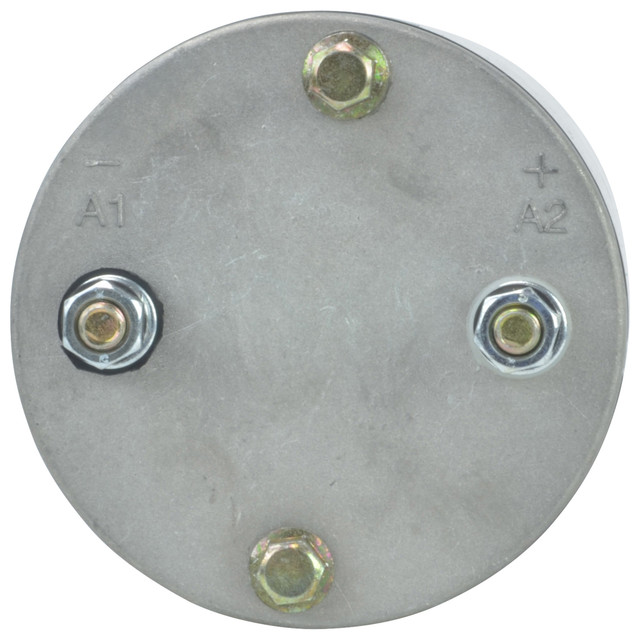

| CRITICAL NOTE | Case Grounded, The A – Terminal On the CE Housing Is for an Auxiliary Ground If Desired |
| VOLT | 12 |
| POWER | 1 kw |
| HP | 1.341 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 3.071″ |
| OD | 78 mm |
| SHAFT OD | 0.630″ |
| SHAFT OD | 16mm |
| LENGTH | 170 mm |
| LENGTH | 6.693″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| SHAFT | 6mm Slotted Shaft |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0123 |
| EAGLE | 1330185 |
| J&N ELECTRICAL PRODUCTS | 430-22046, 430- |
| LESTER | 10762 |
