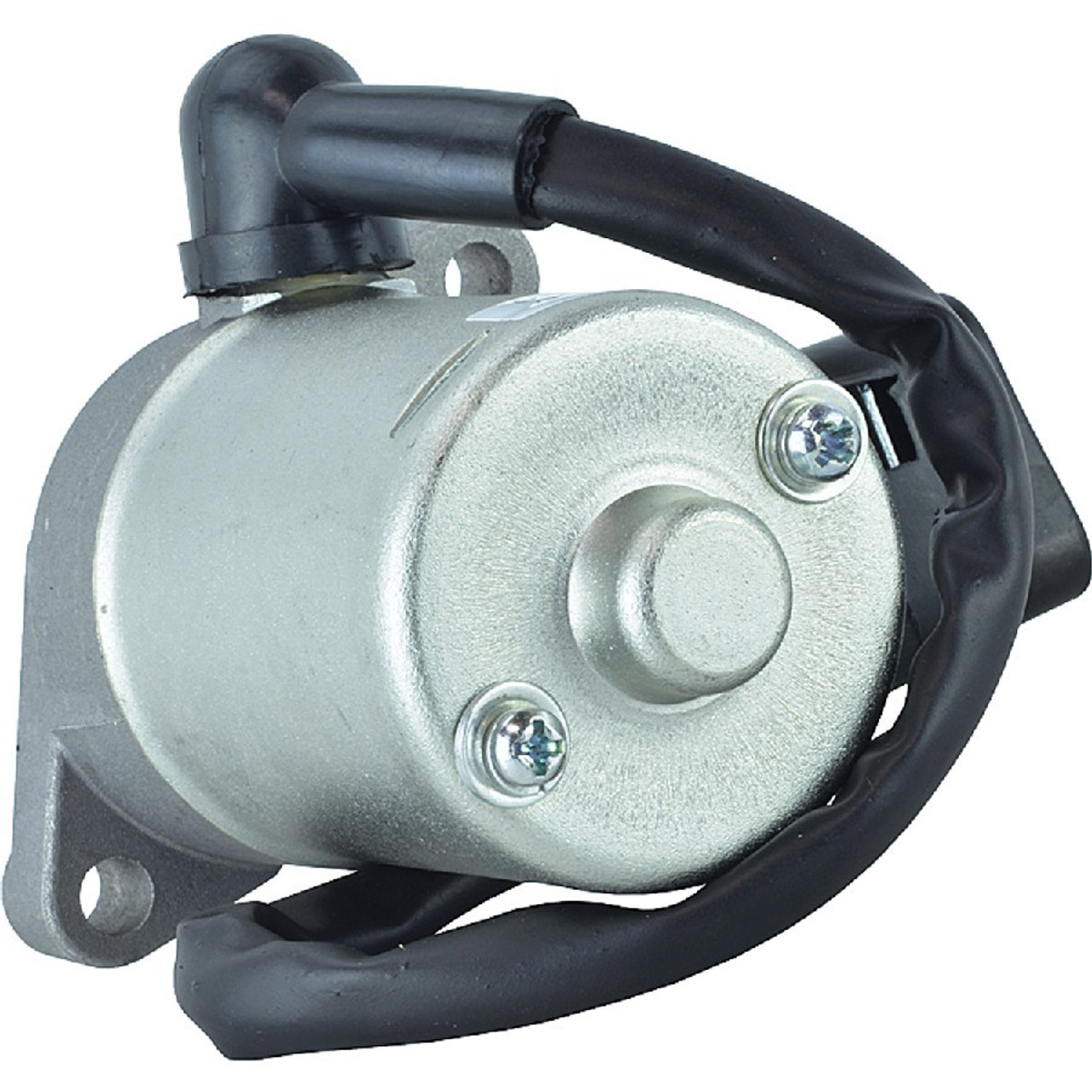

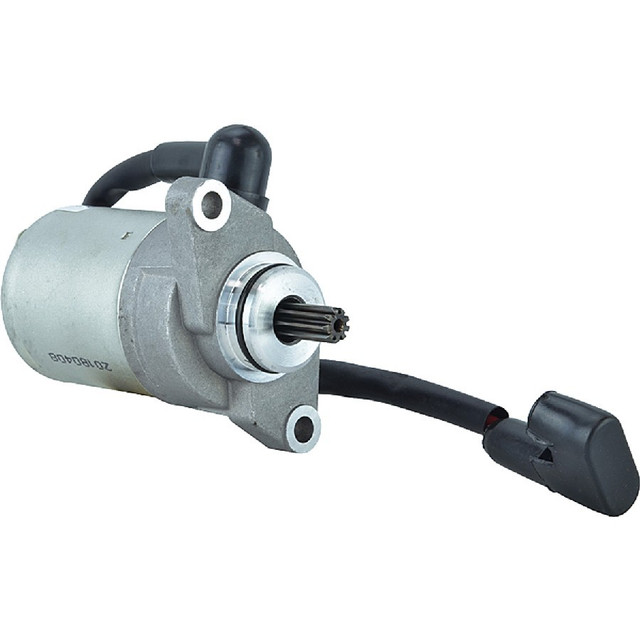

NEW Starter for CAN-AM DS 90 & DS 90X ATV; 410-54261, V31200DGF010, V31200DGF020, V31200DGF020LL
NEW Starter for CAN-AM DS 90 & DS 90X ATV; 410-54261, V31200DGF010, V31200DGF020, V31200DGF020LL - Image 2

NEW Starter for CAN-AM DS 90 & DS 90X ATV; 410-54261, V31200DGF010, V31200DGF020, V31200DGF020LL

$108.99

Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Counter Clockwise
NUMBER OF TEETH 9
GEAR OD 0.339″
GEAR OD 8.600mm
LENGTH 3.425″
LENGTH 87 mm
MOUNT HOLE ID 1 6.700mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR DISTANCE 1 2.547″
MOUNTING EAR DISTANCE 1 64.700mm
REGISTRY OD 1.024″
REGISTRY OD 26mm
WARRANTY 1 Year
17mm Shaft Length, 240mm B+ Cable w/6.3mm ID Eyelet

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD 410-54261, SMU0501
CAN-AM V31200DGF010, V31200DGF020, V31200DGF020LL

Applications

Part fit

MAKE MODEL ENGINE YEAR
Can-Am DS 90 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Can-Am DS 90X 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
