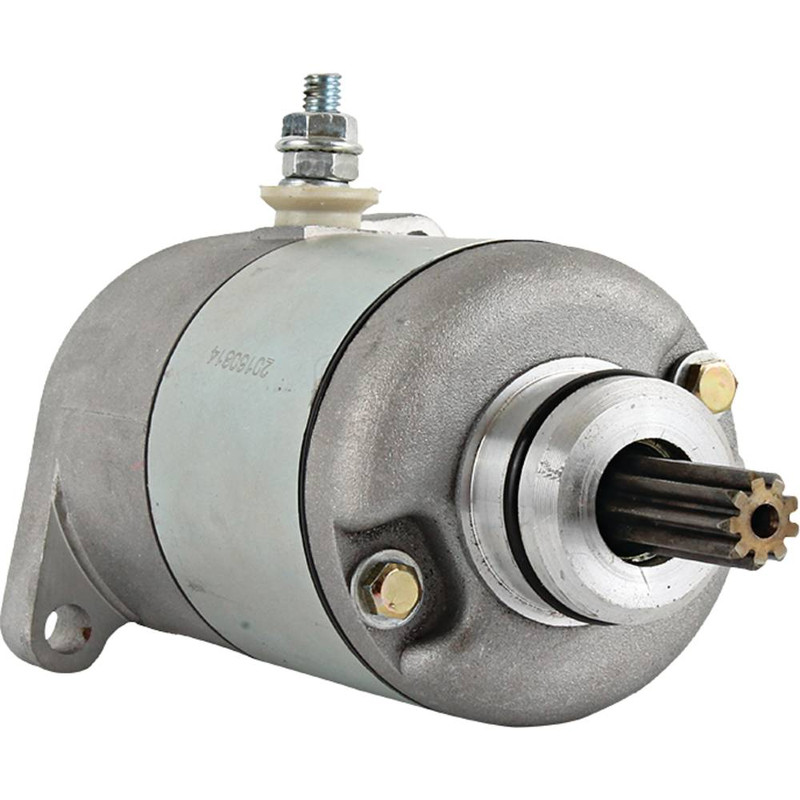

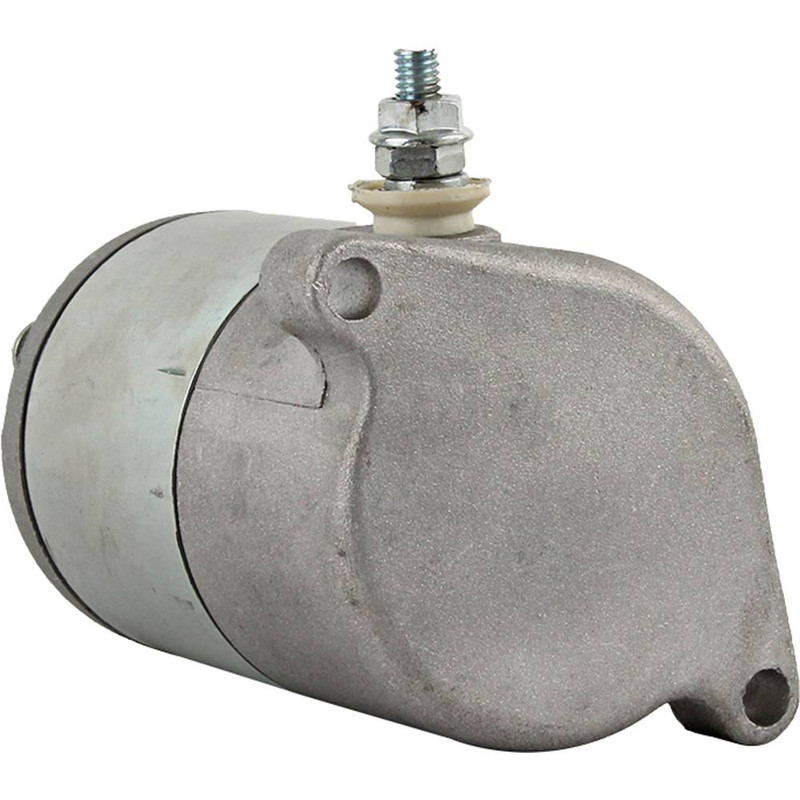

NEW Starter for HONDA SH125 & SH125i (2001-2008) Scooters; 410-54242, 31200KGF901, 31200KGF902, SM14-233; LESTER 37046
$84.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.453″ |
| GEAR OD | 11.500mm |
| LENGTH | 3.906″ |
| LENGTH | 99.200 mm |
| MOUNT HOLE ID 1 | 7.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 3.110″ |
| MOUNTING EAR DISTANCE 1 | 79mm |
| REGISTRY OD | 1.181″ |
| REGISTRY OD | 30mm |
| WARRANTY | 1 Year |
| M6-1.0 Threaded B+ Stud |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0555 |
| HI LEVEL | 219531 |
| HONDA | 31200KGF901, 31200-KGF-901, 31200KGF902, 31200-KGF-902 |
| J&N ELECTRICAL PRODUCTS | 410-54242 |
| MITSUBA | SM14-233 |
| SOCIETA GENERALE RICAMBI | 17.8182, 17.81827 |
