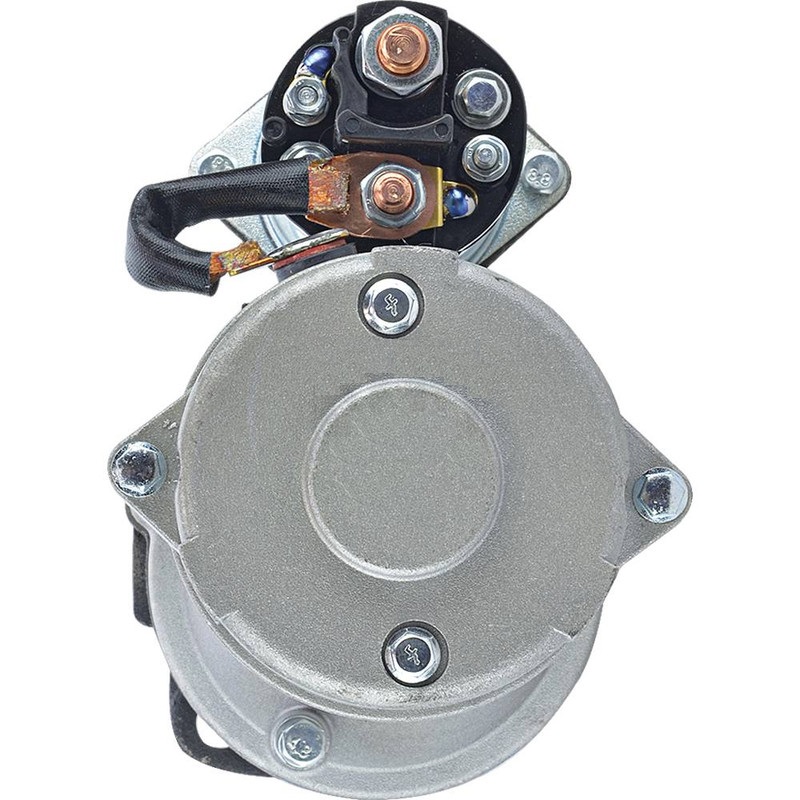

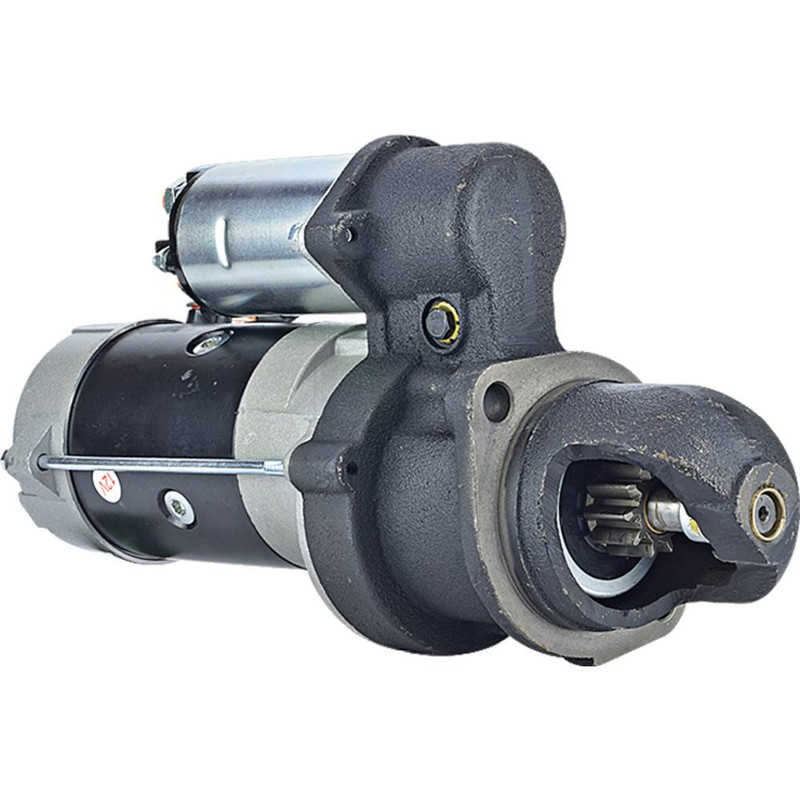

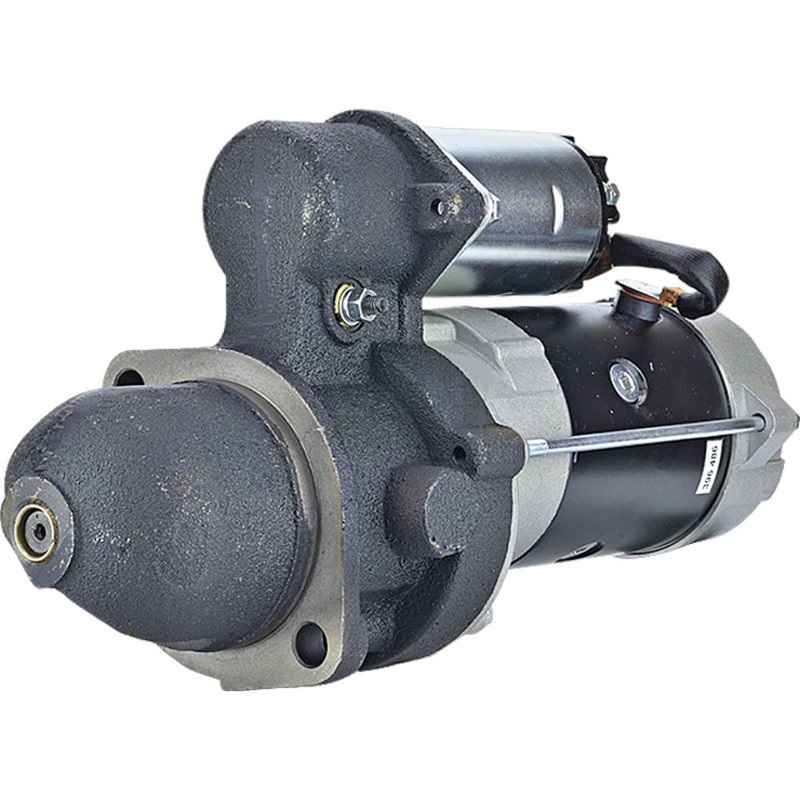

NEW Starter for JOHN DEERE Various Applications; 410-12658, RE19196, RE42730, RE49033, RE51723, RE52119, RE60654, RE64647, TY24305, TY6620; LESTER 6164, 6577
$189.99
Specifications
| UNIT TYPE | Starter |
| FAMILY | Delco 28MT |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 2.900 kw |
| HP | 3.889 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.252″ |
| GEAR OD | 31.800mm |
| LENGTH | 243.600 mm |
| LENGTH | 9.591″ |
| MOUNT HOLE ID 1 | 12mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 104.600mm |
| MOUNTING EAR DISTANCE 1 | 4.118″ |
| REGISTRY OD | 3.244″ |
| REGISTRY OD | 82.400mm |
| WET CLUTCH SEAL | TRUE |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IMI25208-002, IS1027, MS293 |
| DELCO | 10461473, 10461482, 10479630, 1109208, 1113283, 1998364 |
| J&N ELECTRICAL PRODUCTS | 410-12658 |
| JOHN DEERE | RE19196, RE42730, RE49033, RE51723, RE52119, RE60654, RE64647, TY24305, TY6620 |
| LESTER | 6164, 6577 |
| LETRIKA/ISKRA | IS 1027 |
| MAHLE | MS293 |
