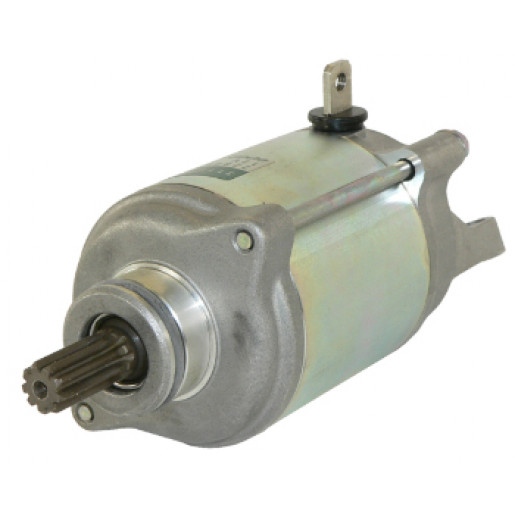

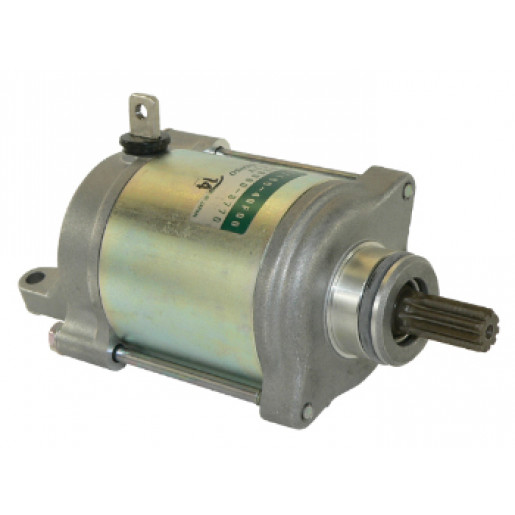

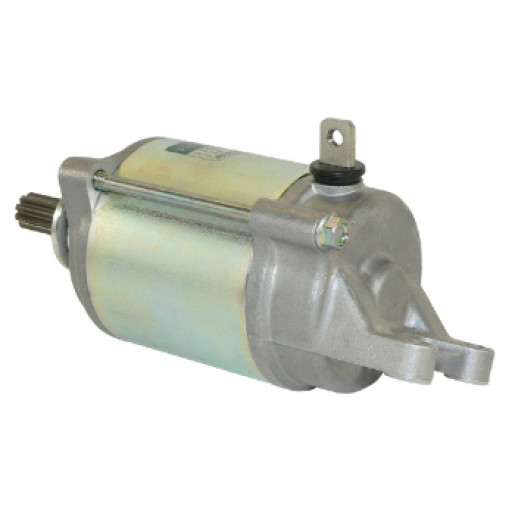

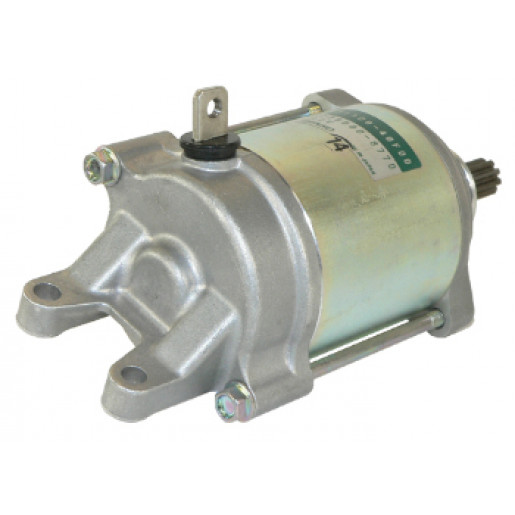

NEW Starter for SUZUKI GSX-R1000 Motorcycles; 410-52223, 228000-877, 228000-8770, 228000-8771, 31100-40F00; LESTER 18804
$199.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.453″ |
| GEAR OD | 11.500mm |
| MOUNT HOLE ID 1 | 7mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| SUZUKI GSX-R1000 M/C 2001-08 ADDL INFO: ALSO BEING USED ON SPRINT CARS |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ND228000-8771, SMU0398 |
| DENSO | 228000-877, 228000-8770, 228000-8771 |
| HI LEVEL | STS0398 |
| J&N ELECTRICAL PRODUCTS | 410-52223 |
| LESTER | 18804 |
| SOCIETA GENERALE RICAMBI | 17.81107 |
| SUZUKI | 31100-40F00 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2001 - 2007 | SUZUKI | GSX-R1000 | 988cc |
