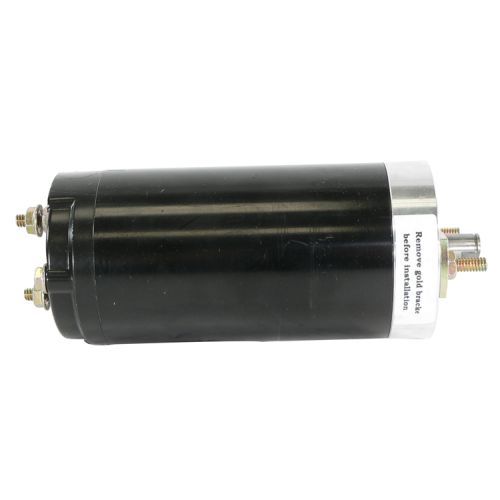

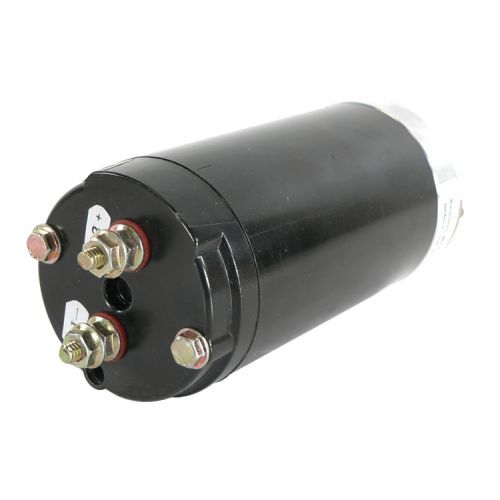

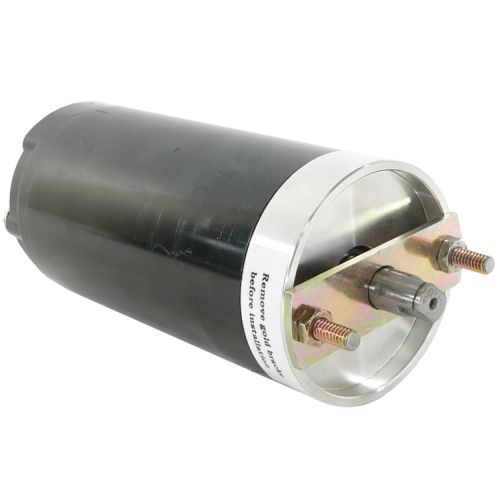

NEW Winch Motor for WARN WINCH Application; 430-22039, 21592, 21594; LESTER 10785
$189.99
ADDL INFO: 3 INCH MOTOR
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 3.134″ |
| OD | 79.600 mm |
| SHAFT OD | 0.520″ |
| SHAFT OD | 13.200mm |
| LENGTH | 186.500 mm |
| LENGTH | 7.343″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| SHAFT | 3/8″ Drive Tang |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0159 |
| J & N | 430-22039 |
| LESTER | 10785 |
| MPA SMALL MOTOR | P819N |
| WARN WINCH | 21592 |
| WARN WINCH | 21594 |
| WESTERN MOTORS | W-8092B |
| WESTERN MOTORS | W-8092D |
| WESTERN MOTORS | W-8092 |
