NEW Starter for MARINER & MERCURY MARINE Applications; 410-21002, 50-44414, 50-44415, 50-77141, 50-79472, 50-79472-1, 50-79472T2, 50-884238T, 50-893893, 893893; LESTER 5388, 5389
April 4, 2024
NEW Drive Assembly for Delco & Prestolite Starters on Agricultural & Marine Applications; 220-12364, A3553
April 4, 2024

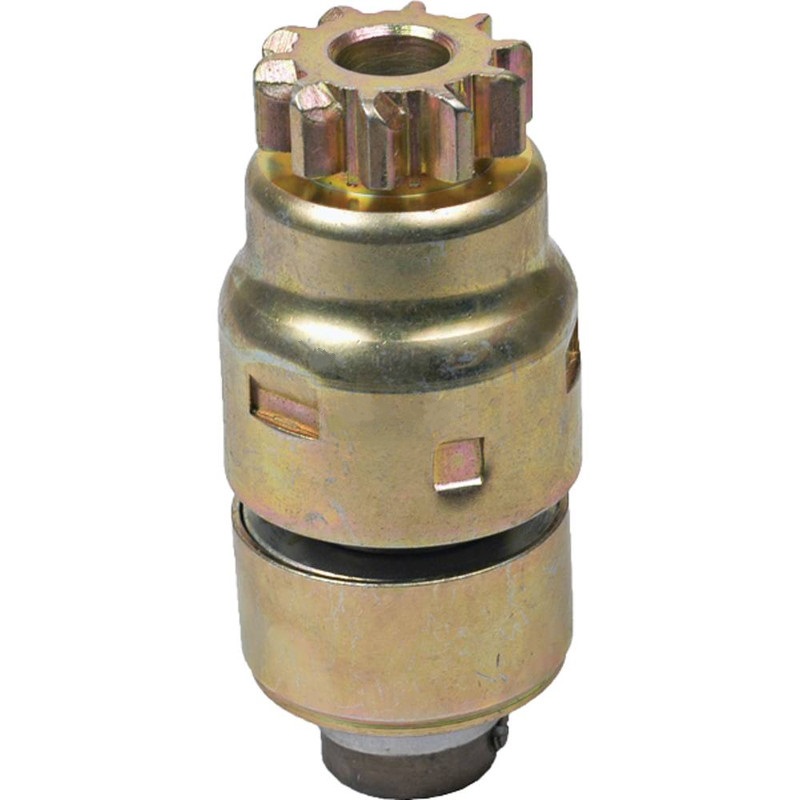

PREMIUM (USA) Drive Assembly for Delco & Prestolite Starters on Agricultural & Marine Applications; 220-12038, SPL5048, A3553
$129.99
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Premium (USA) |
| ROTATION DIRECTION | Clockwise |
| ID | 0.626″ |
| ID | 15.900 mm |
| GEAR OD | 1.543″ |
| GEAR OD | 39.200mm |
| LENGTH | 116.300 mm |
| LENGTH | 4.579″ |
| NUMBER OF TEETH | 10 |
| DRIVE TYPE | Rubber Folo Thru |
| WET CLUTCH SEAL | FALSE |
| Keyway & Set Screw & Facet Large Barrel |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 220-12038, SPL5048 |
| FACET DRIVES | A3553 |
| J&N | 220-12038R, 220-12364 |
Where Used
| Part # | Part Specifications |
| 1107324 | Delco Starter, ROTATION DIRECTION Clockwise, VOLT 12 |
| 1107325 | Delco Starter, ROTATION DIRECTION Clockwise, VOLT 12 |
| 1107464 | Delco Starter, ROTATION DIRECTION Clockwise |
| 1108013 | Delco Starter, ROTATION DIRECTION Clockwise, VOLT 6 |
| 1108089 | Delco Part, ROTATION DIRECTION Clockwise, VOLT 6 |
| 1108134 | Delco Starter, ROTATION DIRECTION Clockwise, VOLT 12 |
