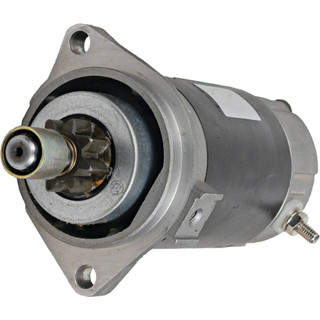

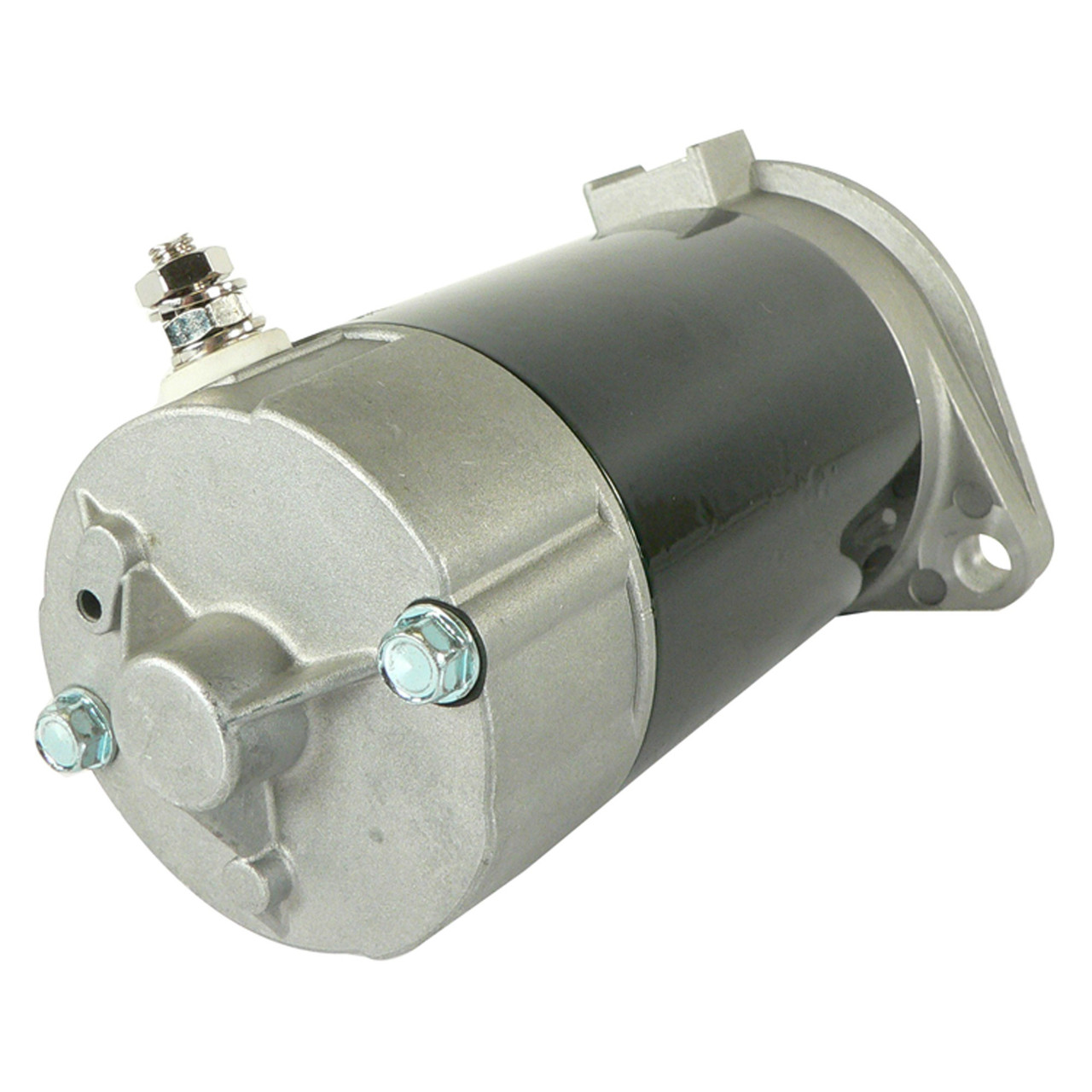

NEW Starter for SUZUKI DF25E, DF25T, DF30E & DF30T Engine – Marine Outboard; 410-44069, S108-122A, S108-122AN, 31100-89J00, 31100-89J01; LESTER 19704
$199.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
8 |
| GEAR OD |
1.102″ |
| GEAR OD |
28mm |
| MOUNT HOLE ID 1 |
8.900mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
S108-122A, SHI0163 |
| EMP |
4-6419 |
| HITACHI |
S108-122A, S108-122AN |
| J&N |
410-44069 |
| LESTER |
19704 |
| MERCURY MARINE |
8M6007389 |
| SIERRA MARINE |
18-6419 |
| SUZUKI |
31100-89J00, 31100-89J01 |
Applications
| Make |
Model |
Engine |
Years |
| Suzuki |
DF25E |
36CI |
2000 – 2006 |
| Suzuki |
DF25T |
36CI |
2000 – 2006 |
| Suzuki |
DF30E |
36CI |
2000 – 2007 |
| Suzuki |
DF30T |
36CI |
2000 – 2007 |
